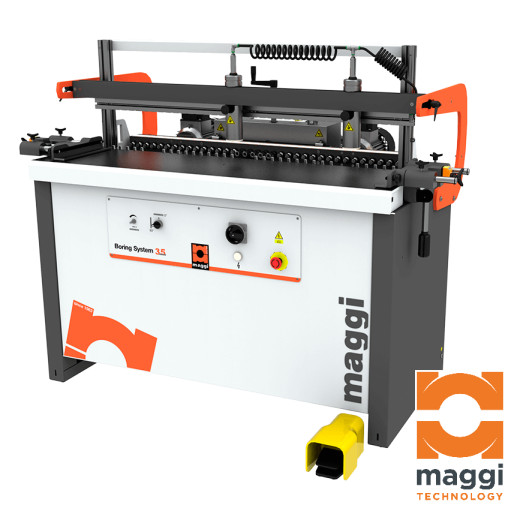

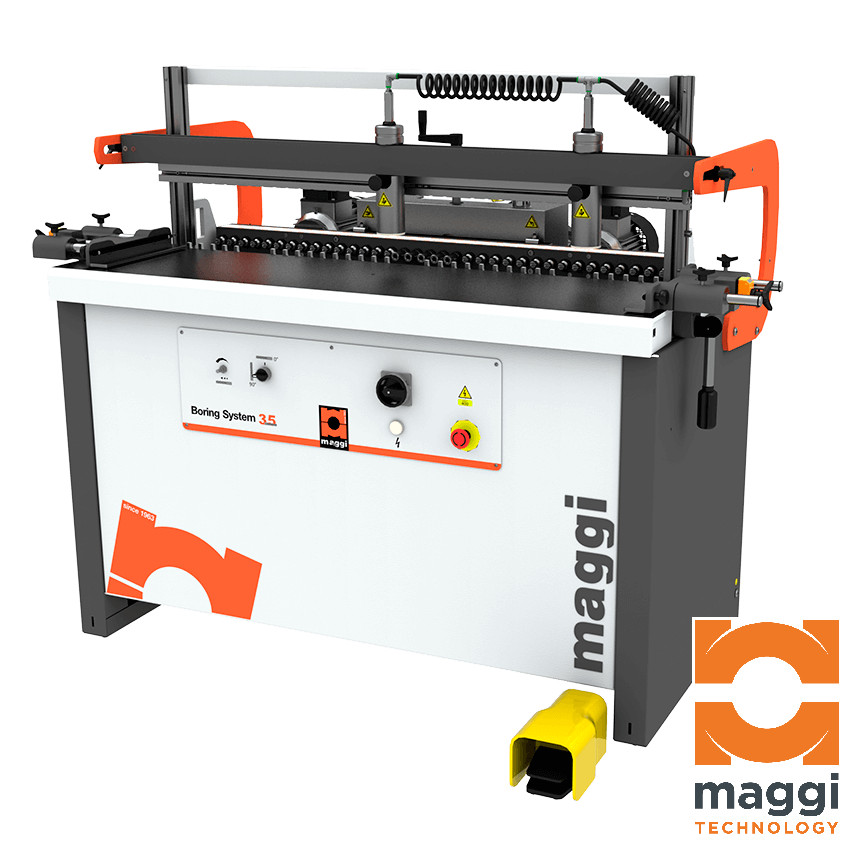

Maggi 35 Spindle Boring System with 2 x Motors

Enquire Today

was £POA

£POA + VAT Out of Stock

Product Features

For horizontal and vertical drilling of panels and solid wood, for furniture in general.

Technical Specification

- n.spindles 17 left / 18 right
- distance between spindle centres 32mm
- distance between 1st & last spindle 1088mm
- max boring depth 85mm
- max horizontal drilling height 55mm
- max dimensions of workpiece 1335x3000mm
- motors 2 x 2Hp
- working air pressure 6-8 bar

Net weight 450kgs
Machine footprint 1670mm x 990mm x 1280mm

5 x Quick change bushes supplied
LH & RH 1.5M Fence Bar with 4 x stops

Technical specification
◾Safety devices
◾High quality end products
◾Quick and precise setting up
◾Safety clamps allows prompt setting on panels with no adjustment
◾Spyral system, programming and boring depth adjustment
◾Pneumatic head-rotation from 0 to 90deg with lock and stop reference

For further information

Call us on 0116 2861617 or email [email protected]

35 Spindle Boring System with 2 x Motors
