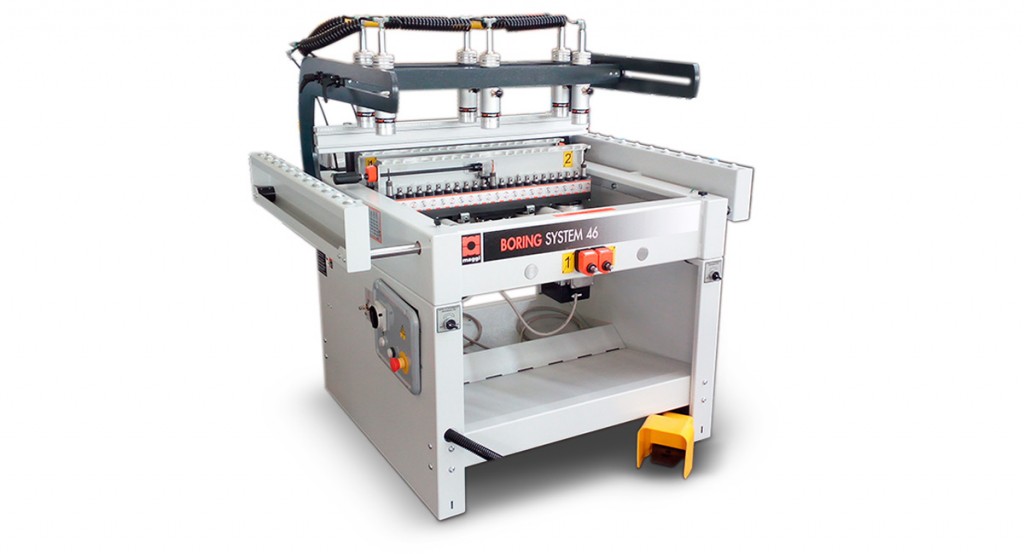

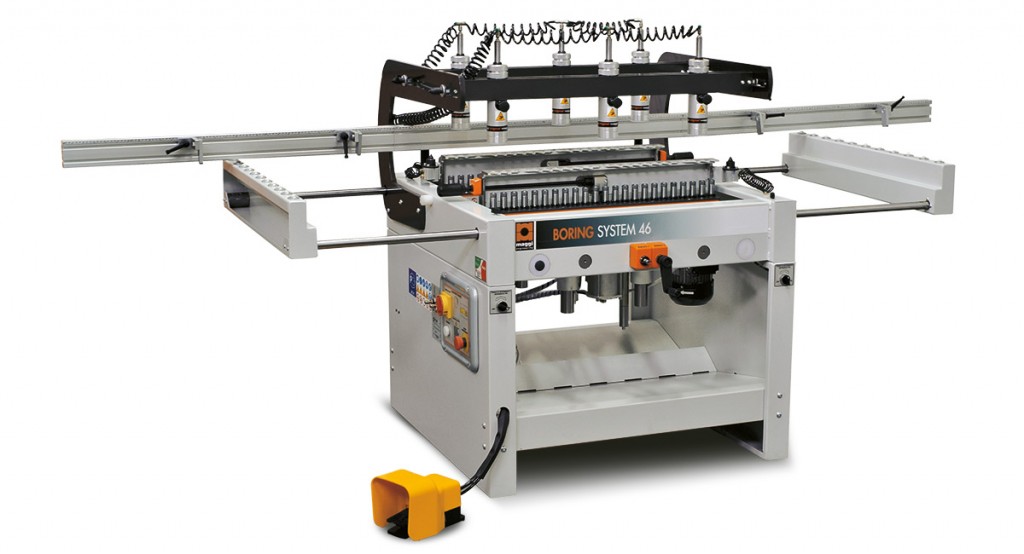

Maggi 46 Spindle Double Head Vertical Boring System

Product Features

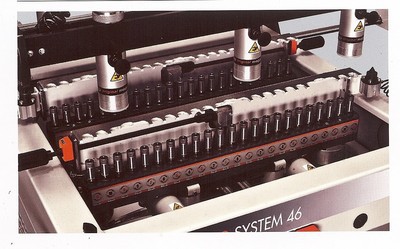

Semi Automatic Boring machine equipped with 2 parallel vertcial boring heads.

Machine for vertcial boring, expressly designed to execute holes in a line. Particularly suited for bookcase and wardrobe-side processing.

Quick, precise and easy setting up.

Specification.

No. Vertical Heads - 2
Number of spindles 23
spindles each head - left 11 / right 12
Centres - 32mm
Distance between 1st & last spindle - 704mm
Max boring depth - 55mm
Inside diameter of quick change chucks - 10mm
Max height of clamps from worktable - 75mm

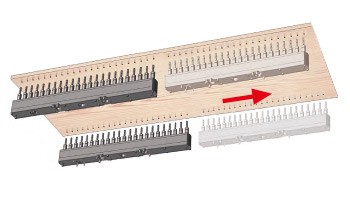

Minimum distance between the two heads - 130mm
Maximum distance between the two heads - 650mm
Maximum dimensions of workpeice - 700x3000mm
Height of worktable - 875mm
Number of clamps - 6
Number of motors - 2
Motor power - 1.5Hp
Working air pressure - 6-8 bar

Standard machine equipped with

10 x Quick Release Bushes
3M Fence Bar with 4 Stops
6 x Clamping Pressers
2 x Pneumatic Reference Pins
Instruction Books

Technical specification

• Foot pedal operation

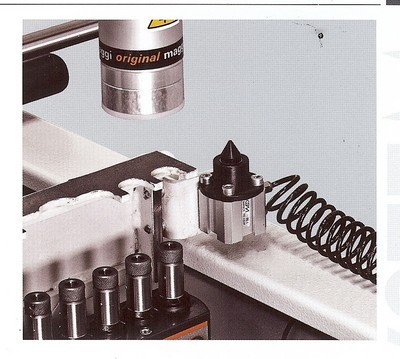

• Pneumatic reference pin
• Pneumatic safety clamps
• Two paralell vertical boting heads with 23 spindles each
