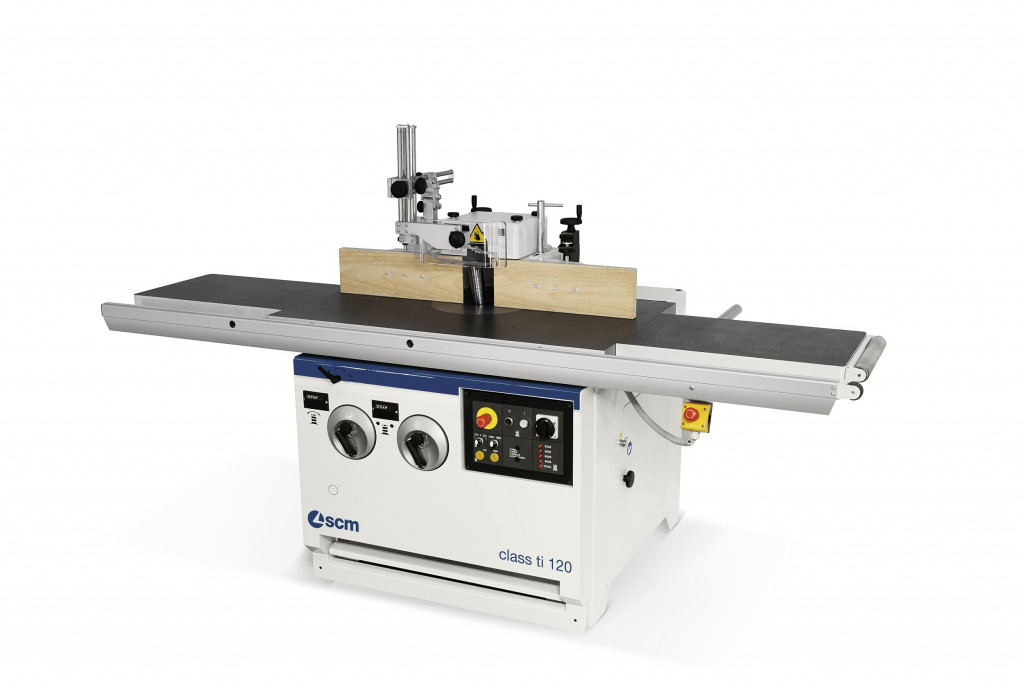

SCM New Ti120 Class Tilting Spindle Moulder with LL Version Profile Tables

Product Features

Worktable dimensions 1200mm x 810mm
Spindle tilting +/- 45 deg
Spindle height 140mm
Max tool diam retractable under work table 320mm x 60mm
Braked Motor 7Kw
5 Spindle speeds 3000 to 10000rpm
Dust hood diam 120mm

Spindle Moulder fence arrangement with mechanical adjustments
Aluminium fences
Mk4 interchange shaft / diameter 30mm

LL Version with cast iron profiling extensions and front support bar
