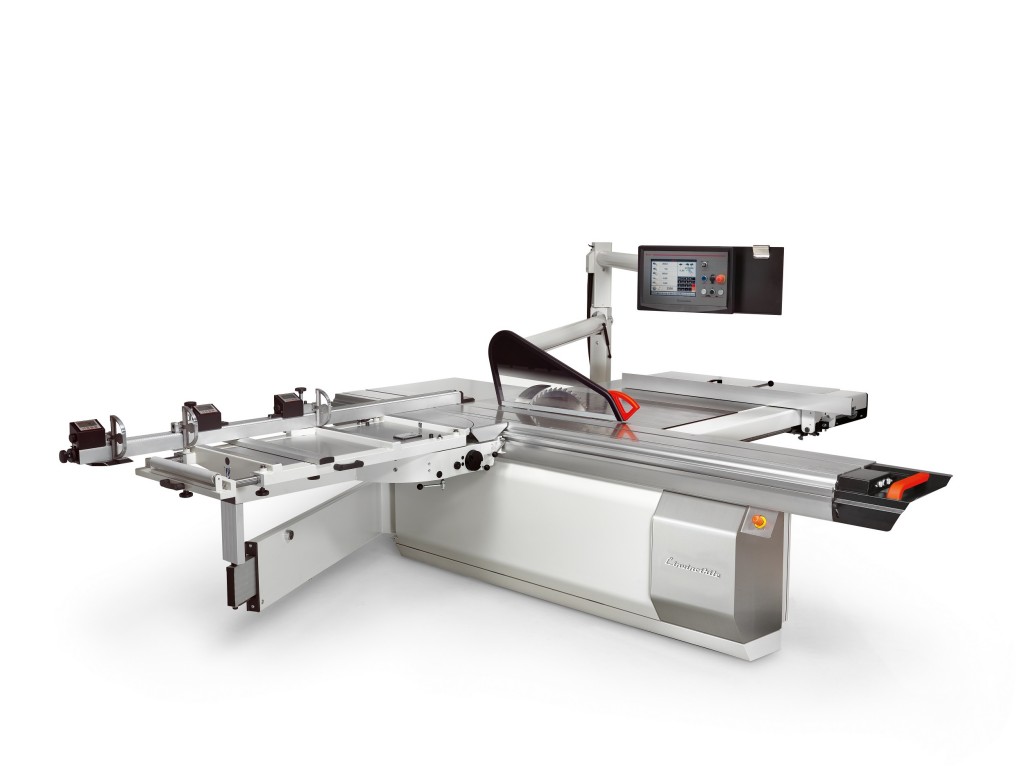

SCM SI 5 L'invincibile Programmable Sliding Table Panel Saw

Enquire Today

was £POA

£POA + VAT Out of Stock

Product Features

Main blade diameter mm 550
Scoring blade diameter mm 120
Diameters to be used simultaneously 450 x 120
Squaring capacity with carriage and extended stop - with 3200 mm carriage 3200 x 3200mm
3800x3200

Blade tilting degrees 0 +46
Max. cutting height at 90° mm 200
Max. cutting height at +45° mm 130

Rotating blade speed rpm 2500-3500-5000
Scoring unit speed rpm 8500

Diam. of exhaust outlets
– at base 120mm
– on overhead saw guard 100mm

Main blade motor power Hz50 kW 7
Main scoring unit motor power Hz50 kW (Hp) 1,3 (1,7)
Cutting width on parallel fence mm 1500

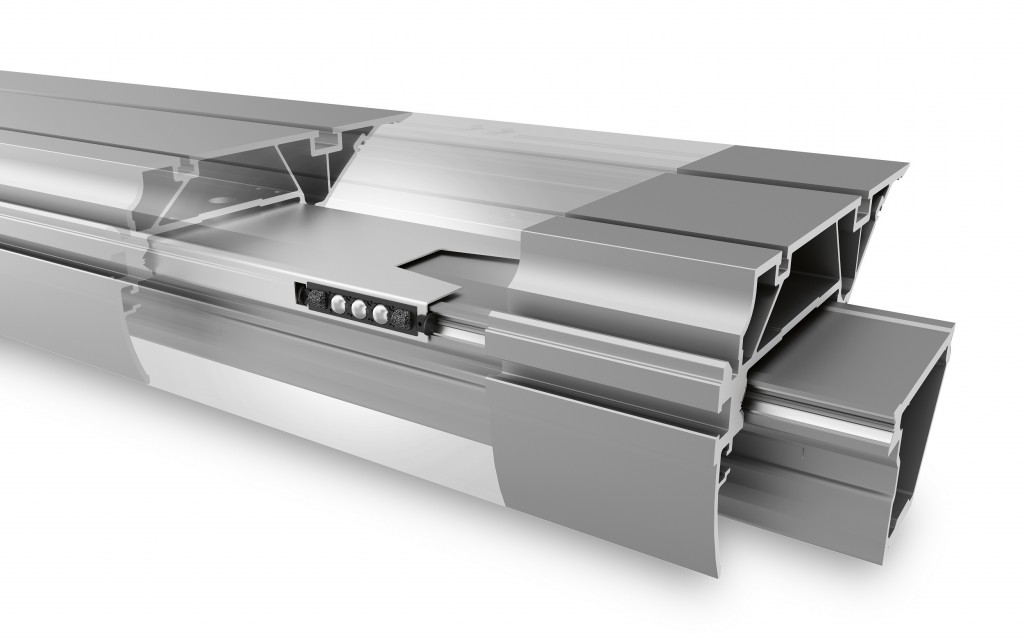

10 years guarantee for the carriage sliding system

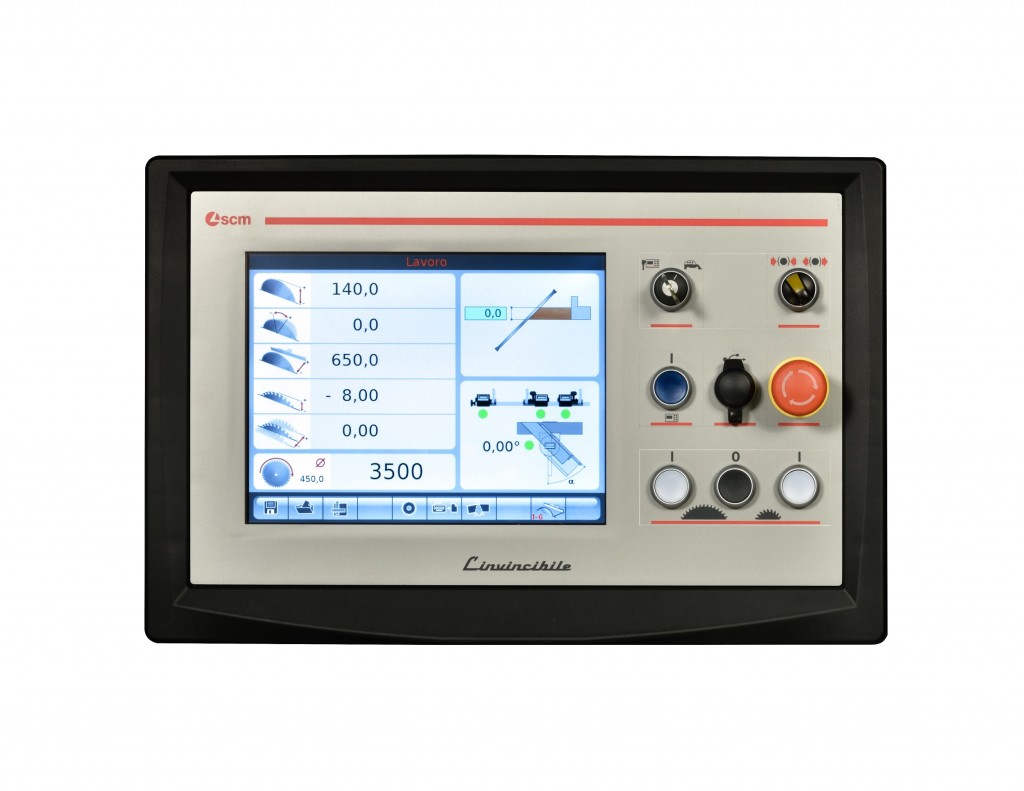

"EASY TOUCH 7" electronic control
complete with:
– CPU ARM, 7” colour flat screen
– Direct control of the following working axes with manual, manual incremental, semi-automatic, automatic mode:
* main blade lifting
* saw blades unit tilting,
* parallel fence movement,
* scoring blade lifting and lateral movement (with automatic
activation into working position when switching on the blades and automatic
exclusion when switching off the blades)
* number of blade rpm on machine equipped with inverter (option on SI3 and SI5
standard on SIX)
* memory capacity up to 999 working programs of the controlled axes
* programming of sequential measures of the execution of 6 cuts maximum with
a single program
– Operator assistance with graphic help for the solution of eventual working unknown: development and selection of the dimensional measures, working angles both on the worktable fence and the blade, referred to single elements of a compound piece

Operator's assistance function on electronic control
complete with:

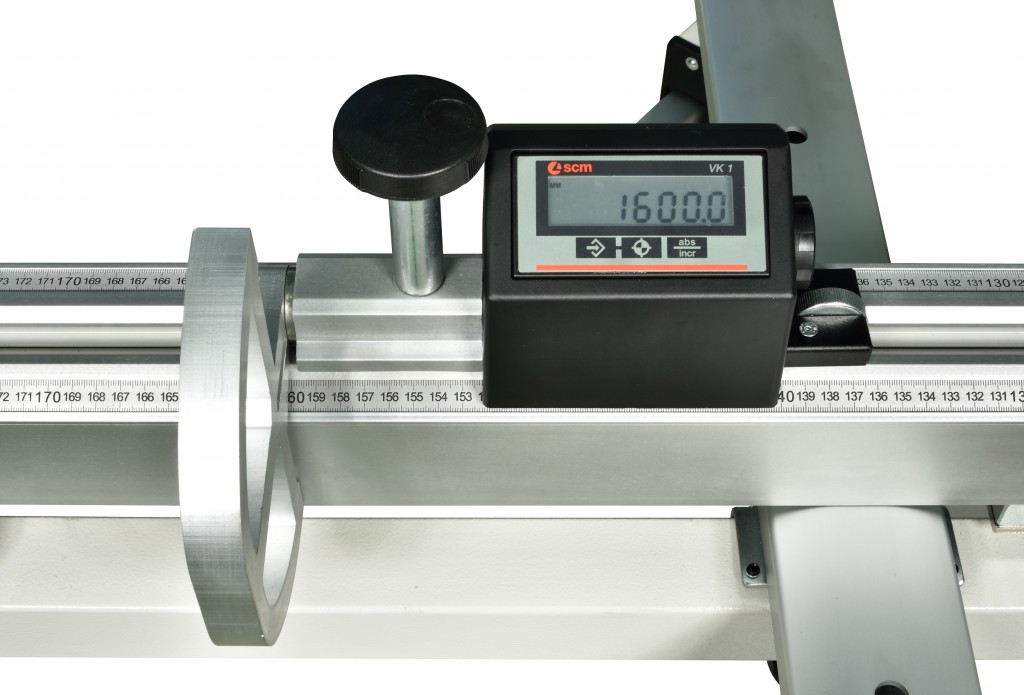

– selection of the stop correct positioning on the squaring fence when carrying out cuts with tilted blade
– selection of the stop correct positioning on the fence when carrying out cuts with angled fence on the worktable, with or without tilted blade

Overhead mobile control panel

Independent powered scoring unit

Programmed parallel fence with sliding on THK guide
controlled axis complete with movement through recirculating ball screw, 25 mt/min max. speed.
– exclusion of fence under worktable, cutting width on the parallel fence, 1500 mm

Electronic scoring unit adjustment
for the motor-powered movement of the horizontal and vertical positioning of the scoring blade
– automatic activation into working position when switching on the blades
– automatic exclusion when switching off the blades

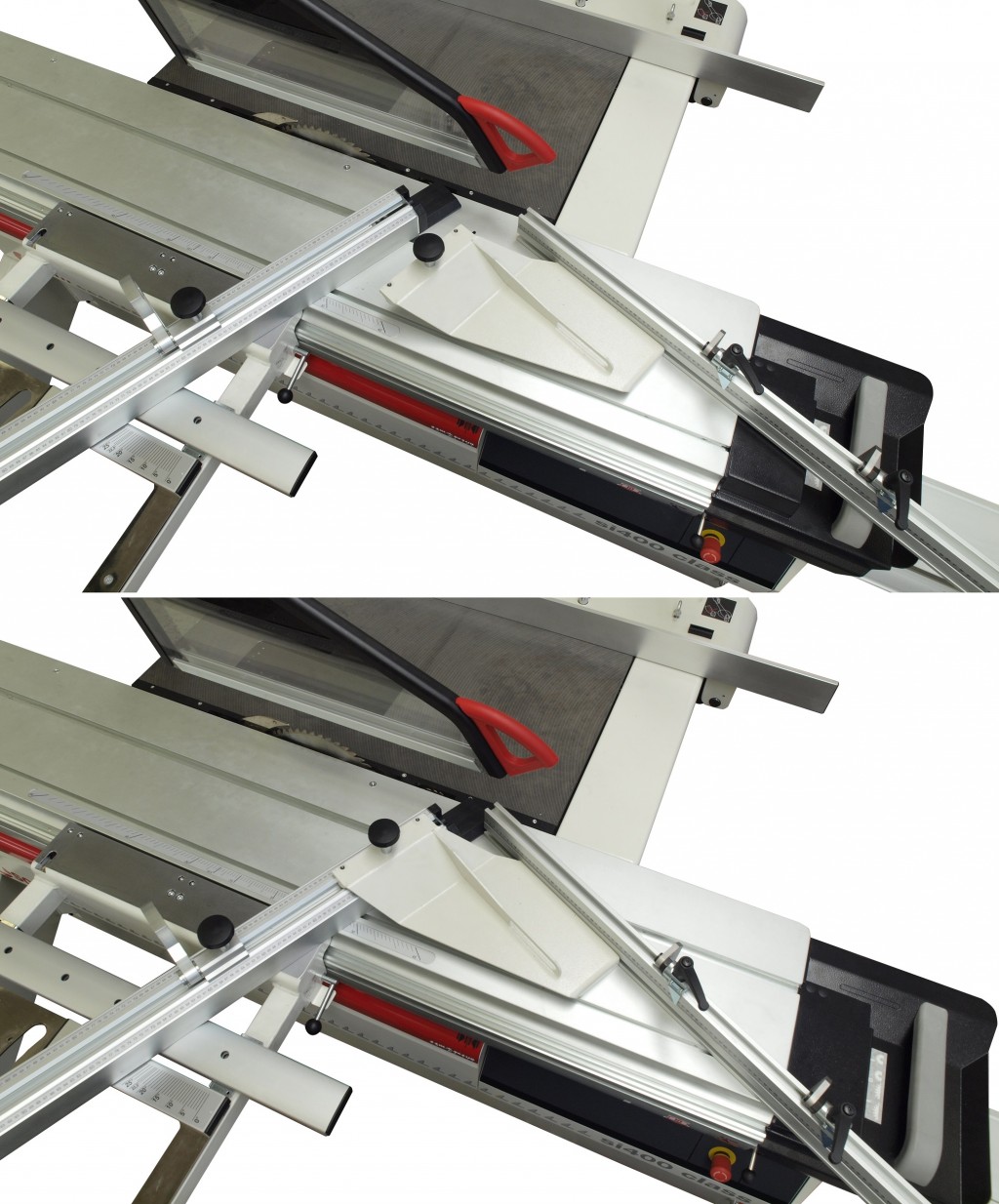

Squaring frame with CompeX device
for angular cutting with automatic self-adjustment of the stop position
– This exclusive system allows the functioning even when the optional fence for complementary cuts is applied

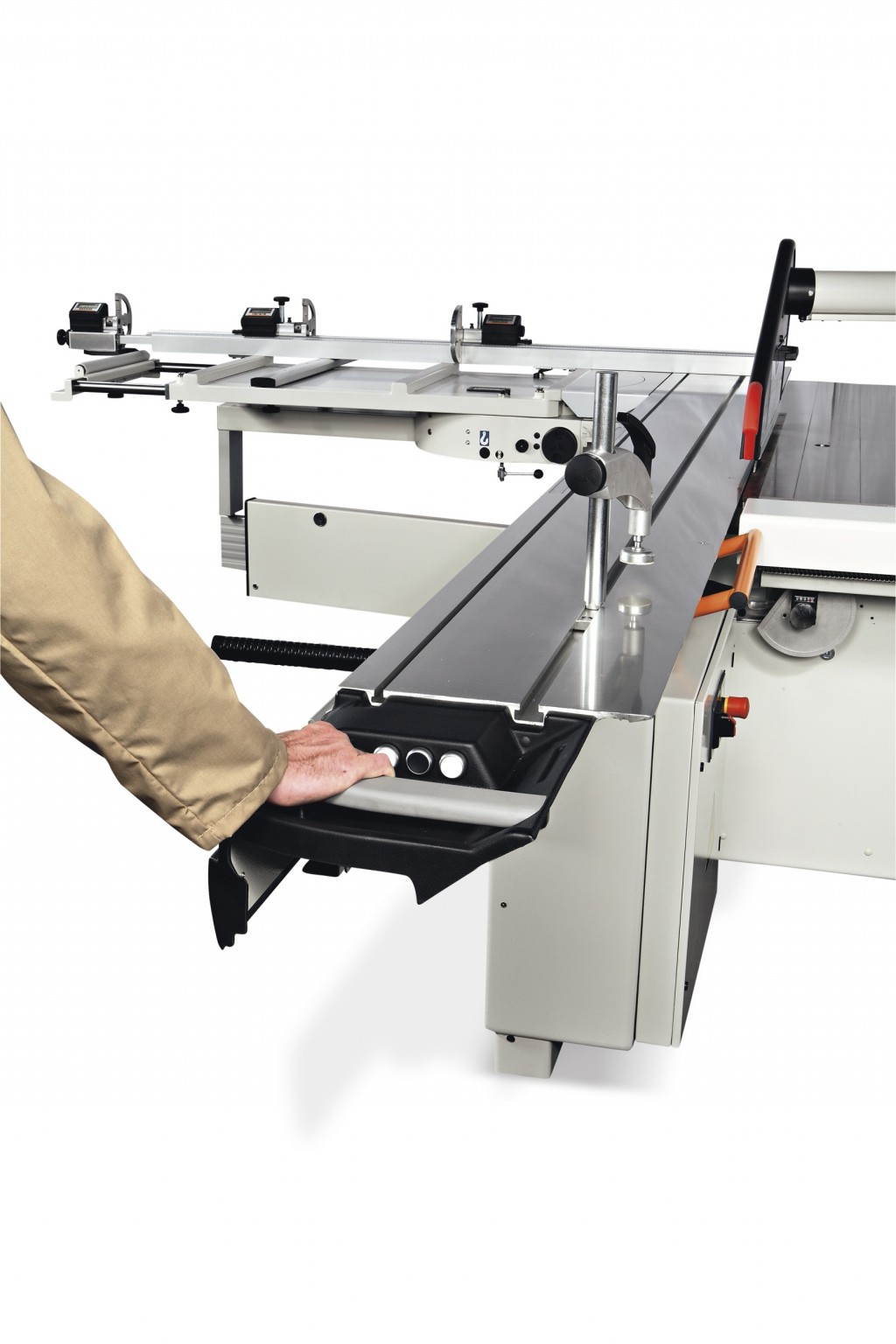

Motor start/stop pushbuttons integrated in the sliding carriage

Emergency pushbuttons located on the front machine side and on parallel fence side
Direct start main motor with pushbuttons
Overload protection
Overhead saw guard with incorporated dust extraction, 100 mm outlet diameter
Auxiliary low voltage circuit (110 volts)
Automatic brake on main motor
Blade access door with safety microswitch and quick locking
Certificate of conformity with "C.E. Standards"
