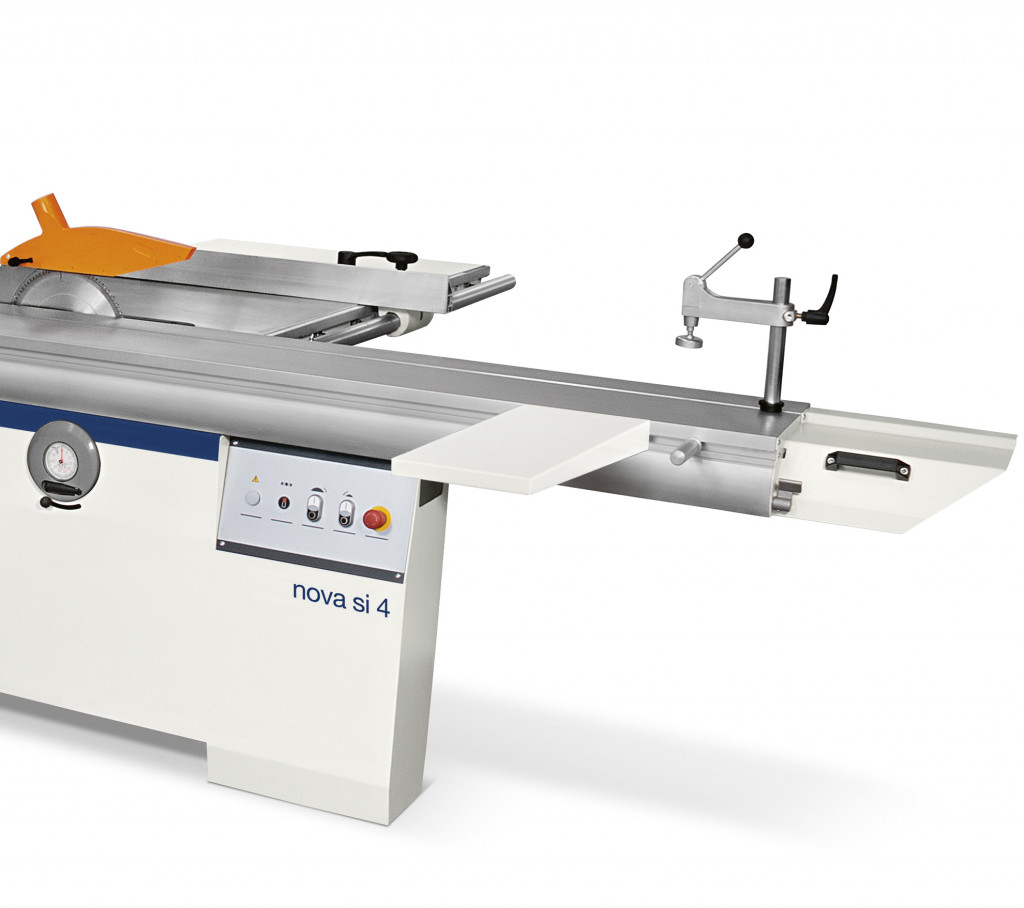

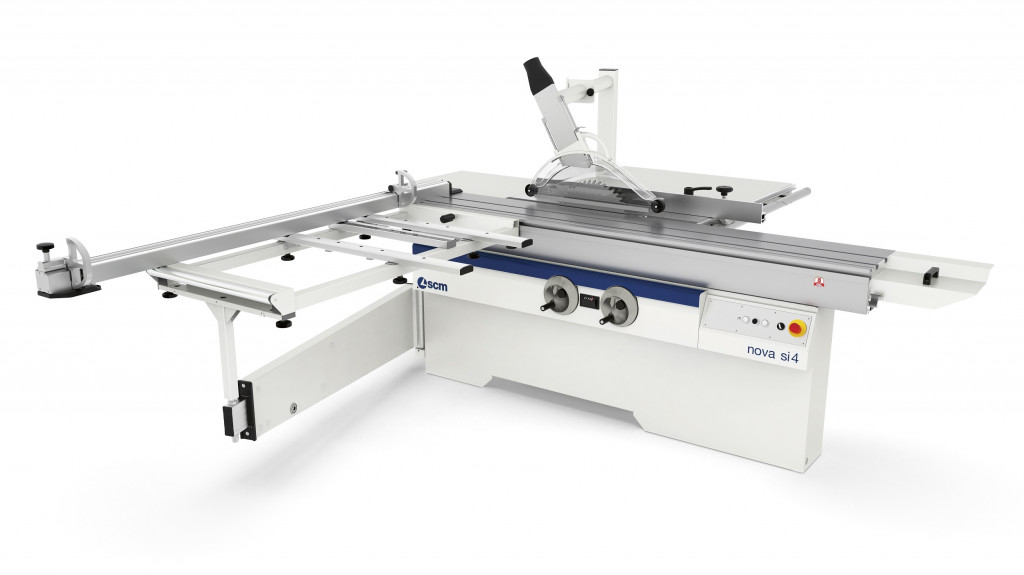

SCM NEW SCM Nova Si4 3.2M Sliding Table Panel Saw with 400mm Blade Kit

Product Features

AVAILABLE - JUNE 2026

Technical Specification

- squaring capacity 3200 x 3200mm
- blade tilt 45 deg
- max cut height 140mm @ 90 deg
- max cut height 97mm @ 45 deg
- motor power main blade 9.5Hp
- motor power scoring saw 1Hp
- diam sawblade 400mm

specification includes

3200mm Sliding Carriage with stop / start
Indepently powered scoring motor
Ripping capacity on parallel fence 1270mm
Overhead sawguard

Supplied with set of Main & Scoring Blades

OPTIONS INCLUDED
Panels support extension with roller conveyor on rip fence
Duplicate stop / start buttons on sliding carriage
2 x Flip Over stops on the squaring fence with magnifying lens

DOES NOT INCLUDE ECCENTRIC CLAMP

STANDARD EQUIPMENT

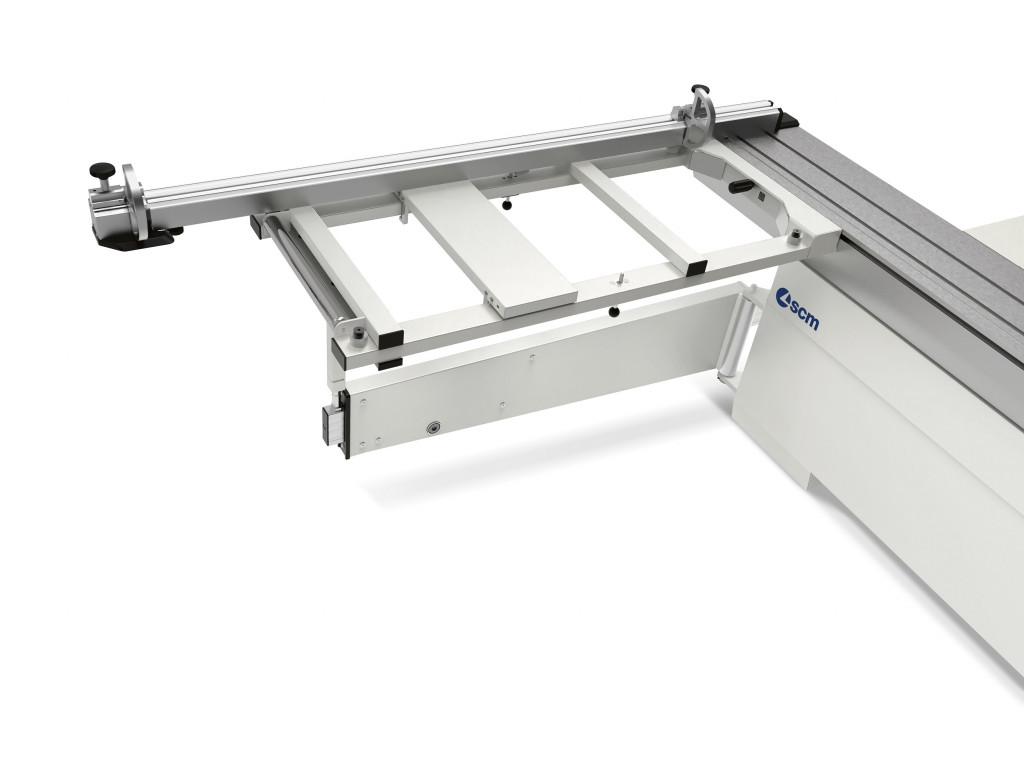

aluminium alloy carriage sliding on hardened steel guides
blade protection on riving knife
rip fence with micro metric adjustment
safety micro switch to blade access door
emergency push buttons to front and side
table extension on exit side
