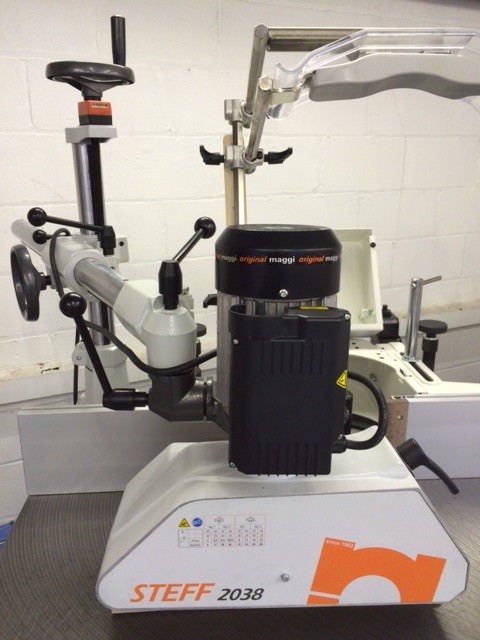

Maggi NEW STEFF 2038 Power Feed Unit with STAND PLUS Universal Stand

Product Features

Automatic Power Feed Unit with STAND PLUS Universal Stand

Technical specification.

- motor power 0,7/1 Hp
- feeding speeds 2-4-5,5-6,5-11-13 15,5-33 m/min
- 3 Rollers
- Roller size 120mm x 60mm
- Gear Lever for easy speed change
- 8 steady speeds back and forward motion.

2 speeds are obtained by changing the position of the gears inside the housing, while 2 speeds result from the rotary switch 1400-2800 rpm. Thanks to the gear shift the use can choose among a double range of speeds.

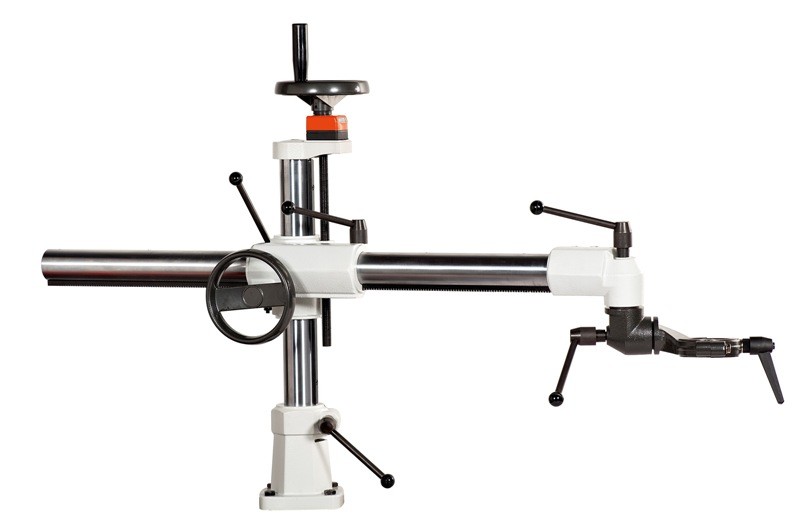

STAND PLUS HEAVY DUTY UNIVERSAL STAND

High Performance Support Stand for use with the Steff Line of Power Feed Units

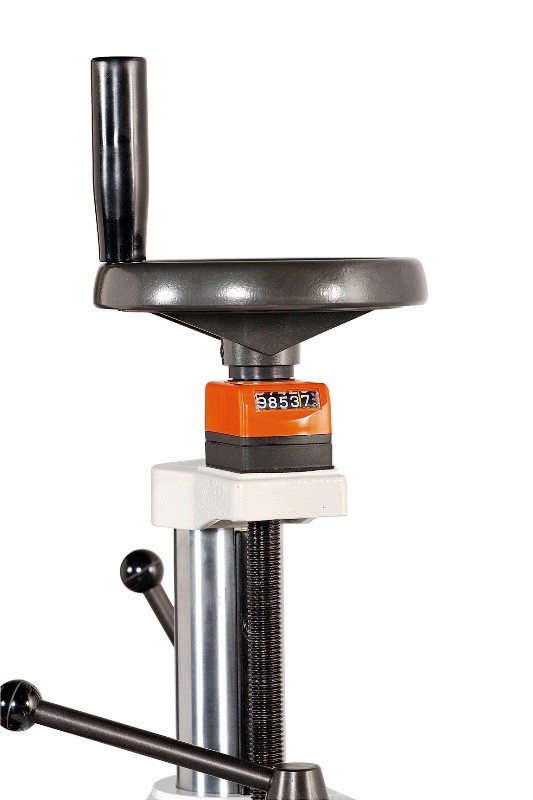

Numeric Counter for decimal height adjustment of horizontal arm

Horizontal arm length 1050mm
Locking clamping levers (length 150mm) for steady quick adjustment

STAND PLUS will fit any Power Feed Unit with a connecting collar size of 75mm diam x 30mm

Totally stable
Fast positioning

MAIN MAGGI / STEFF Stockist and Distributor in the UK.

Delivery charges extra.

No delivery service available for shipping to Ireland - Collection Only

Technical specification

• 100% MADE IN ITALY
• OVER 400,000 FEED UNITS PRODUCED SINCE ITS INTRODUCTION IN 1969
• Motor power enables any kind of feeding
• Resistant and protective electrostatic power paint
• Hard wearing interchangeable gears
• Replacement rubber rollers
