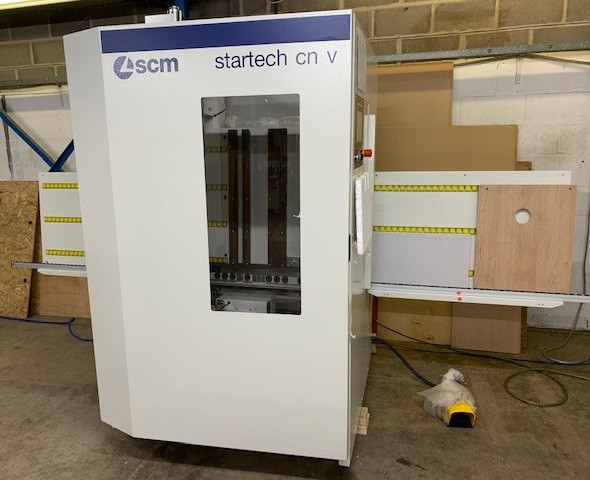

SCM AVAILABLE FOR DEMONSTRATION - New SCM STARTECH CN V CNC Drilling & Grooving Machine.

Enquire Today

was £25,468

£20,995 + VAT In stock

Product Features

IN STOCK AND AVAILABLE FO DEMONSTRATION.

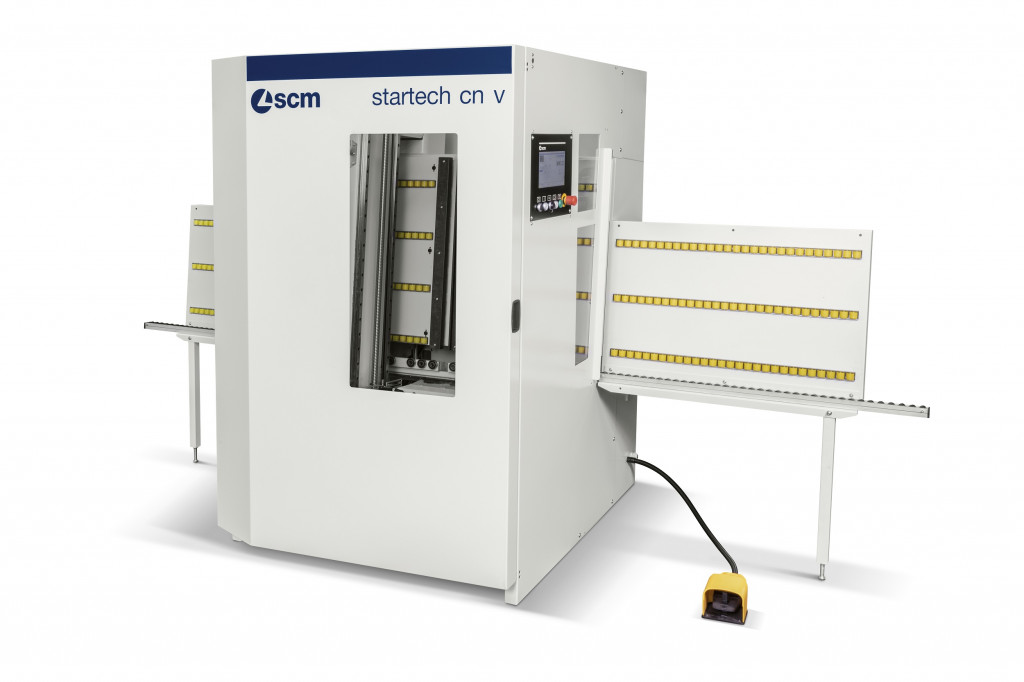

Startech CN V has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 7 independent vertical spindles, the spindle and the blade in “X”, the possibility to drill in “Y".

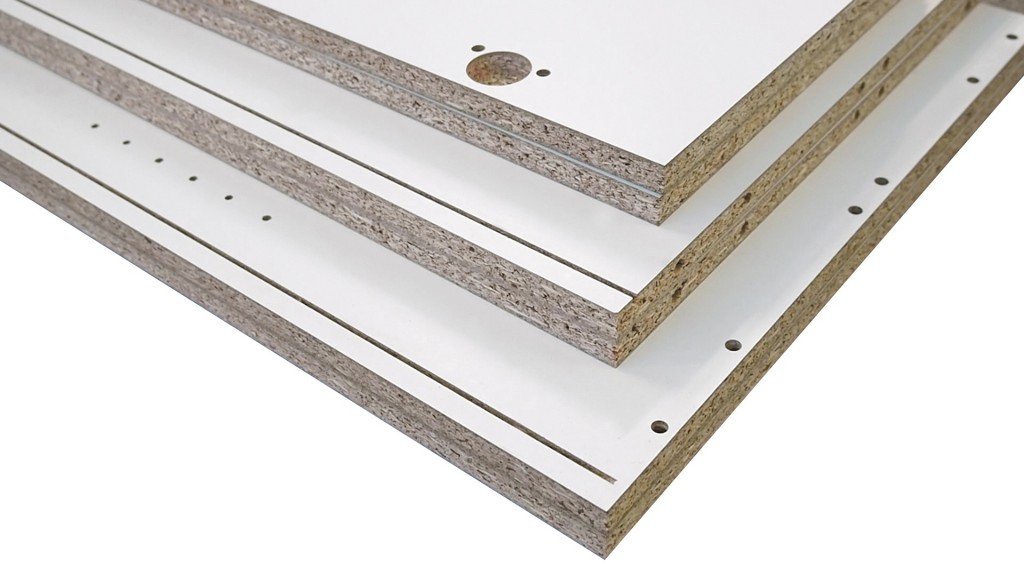

- vertical drilling on the panel surface
- horizontal drilling on all 4 sides
- grooving with integrated disc cutter along X axis

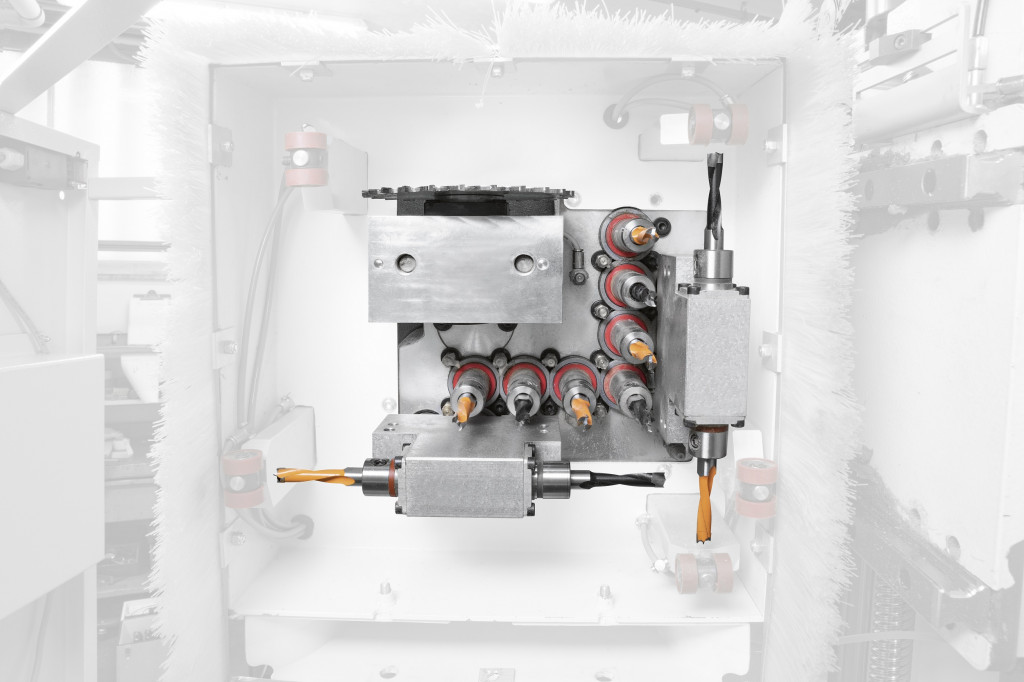

The drilling head positioned above the panel allows a precise machining with a reliable reference.

Thanks to the 7 independent vertical spindles, the spindle and the blade in “X”, the possibility to drill in “Y”, finished furniture elements can be produced without having to adjust the bits and with no operator’s intervention for the worktable and machine set-up according to the panels dimensions.

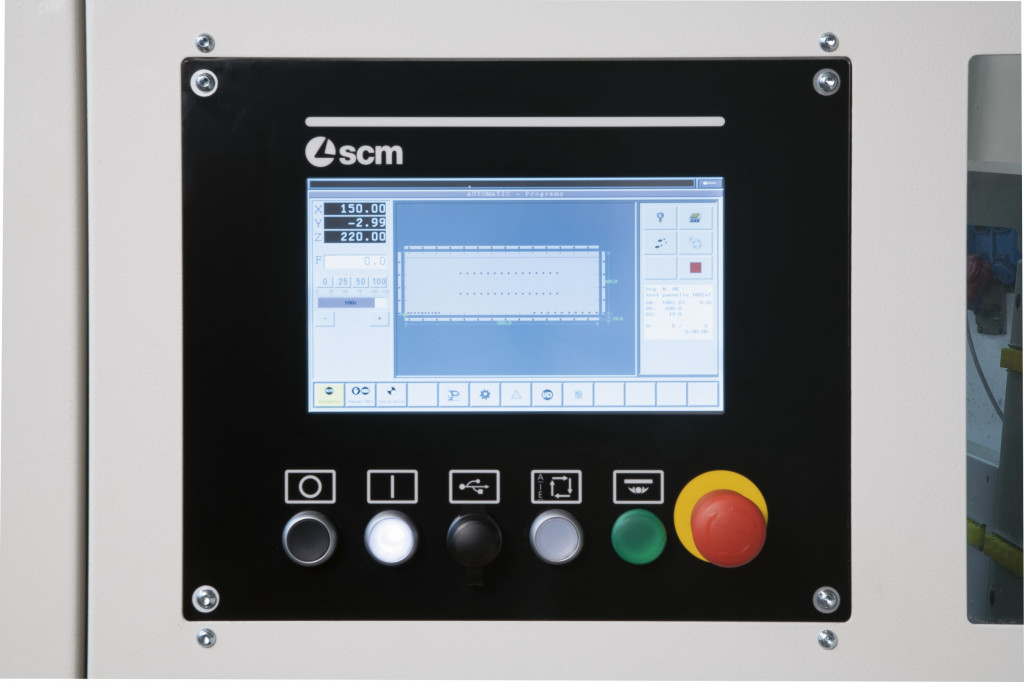

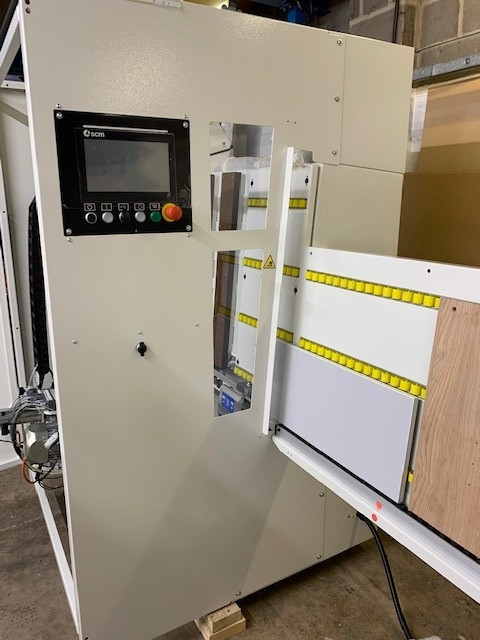

Easy and intuitive: NC control with 7" colour touch-screen display and self-diagnosis/signaling system of errors or damages. Head tooling and machining cycle programming without using any mouse or keyboard and with automatic optimization. Possibility to save and import drilling programs by USB key.

Max. panel dimensions X-Y-Z: 3000 x 900 x 50 mm
Max. panel dimensions X-Y-Z: 3000 x 900 x 50 mm
Min. panel dimensions X-Y-Z: 300 x 90 x 10 mm
Max speed X-Y axes: 20

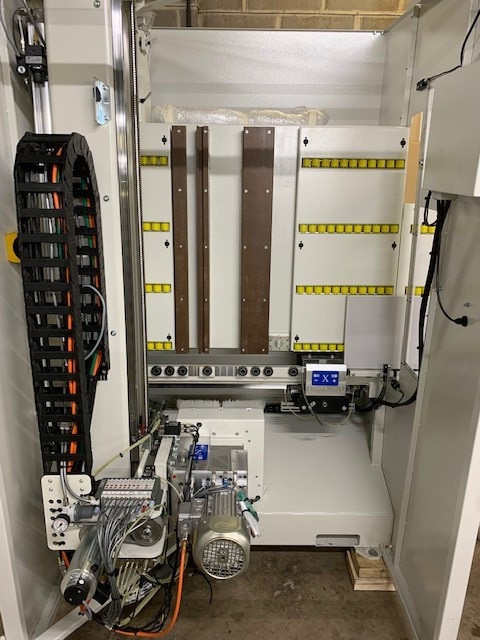

Drilling head:

Spindles (X axis): 2 (1+1)
Spindles (Y axis): 2 (1+1)
Spindles (Z axis): 7 (4X-4Y one common) Integrated fixed blade, cut in direction X
Blade diameter: 125 mm
Blade thickness: 6 mm
Motor power: 2.2 kW
Spindles rotating speed: 4460 giri/min
Blade rotation speed: 5700 giri/min

Air pressure 6Bar
Compressed air pressure 90 N/L
Extraction air consumption 1200 m3/h
Dust Outlets diameter 80mm

Includes

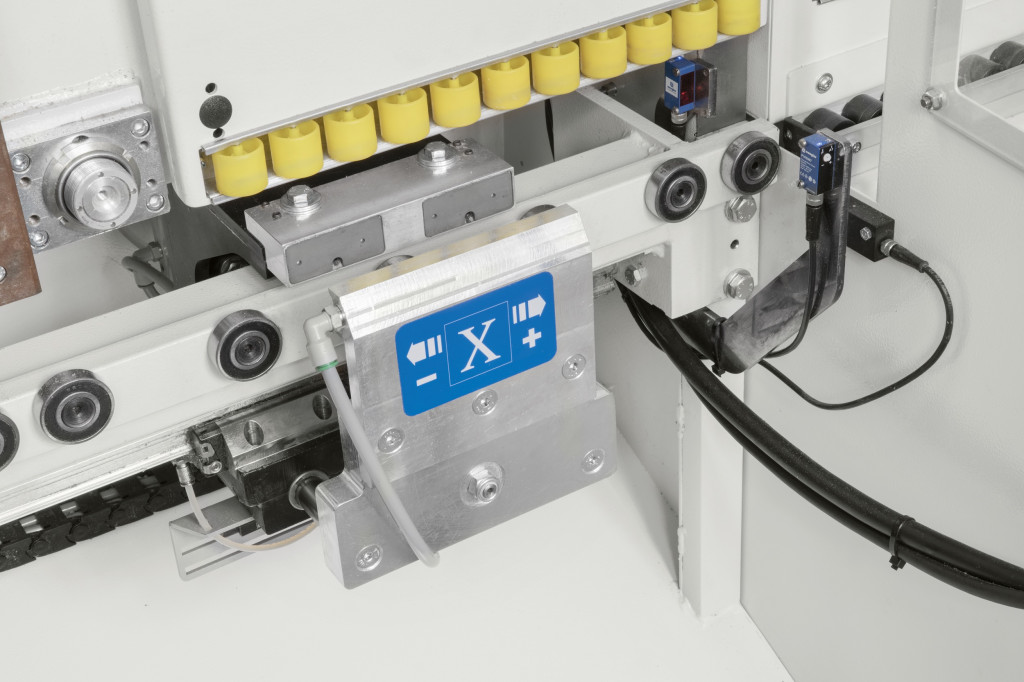

Detecting System for calibrating of opposite panel side reference
Device to increase the drilling pressure along the Z axis
Automatic Lubrication
MAESTRO CNC programming software
Keyboard

** PRICES ARE PLUS DELIVERY & INSTALLTION & TRAINING

Technical specification

  • High Performance
  • Compact
  • Simple & Flexible
