Maggi OFFER PRICE - Boring System 23 Multiborer

Product Features

SPECIAL OFFER

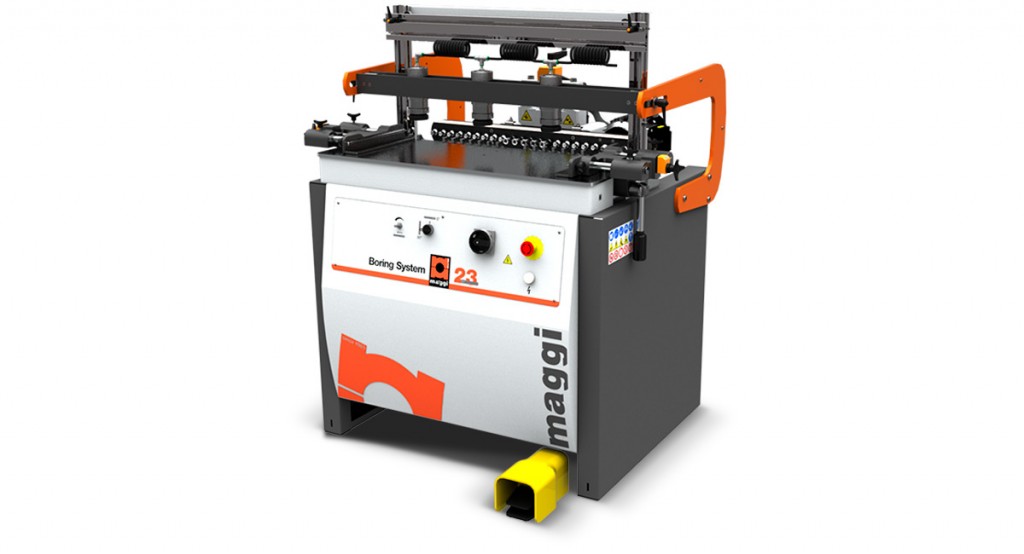

Single head boring machine for horizontal and vertical drilling

Technical Specification

- n.spindles 11 left / 12 right
- distance between spindle centres 32mm
- distance between 1st & last spindle 704mm
- max boring depth 100mm
- max dimensions of workpiece 950x3000mm
- worktable dimensions 1000 x 410mm
- motor 2Hp
- working air pressure 6-7 bar

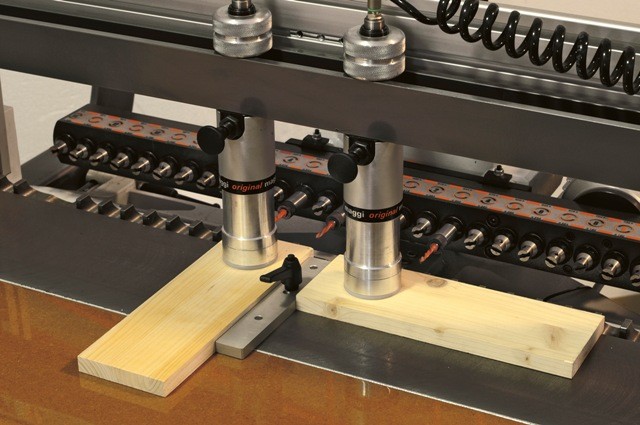

Long Reference Fence (3000mm). Made up of 2 x 1500mm fences with 2 x turning reference stops.

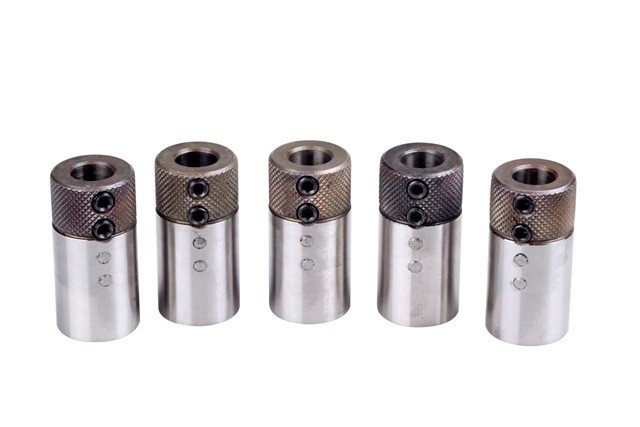

5 x Quick Change Bushes

LIST PRICE £5055.00

Technical specification

• Safety devices
• High quality end products
• Quick and precise setting up
• Safety clamps allows prompt setting on panels with no adjustment
• Spyral system, programming and boring depth adjustment
• Pneumatic head-rotation from 0 to 90deg with lock and stop reference
