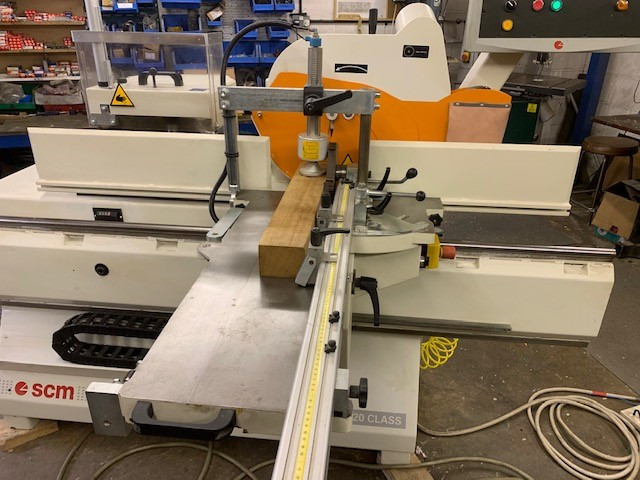

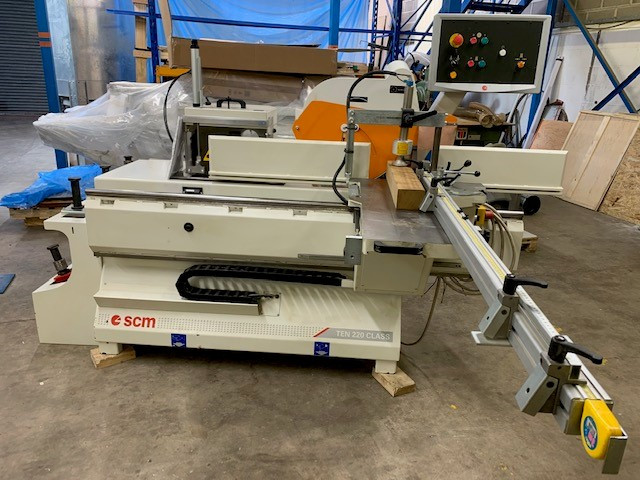

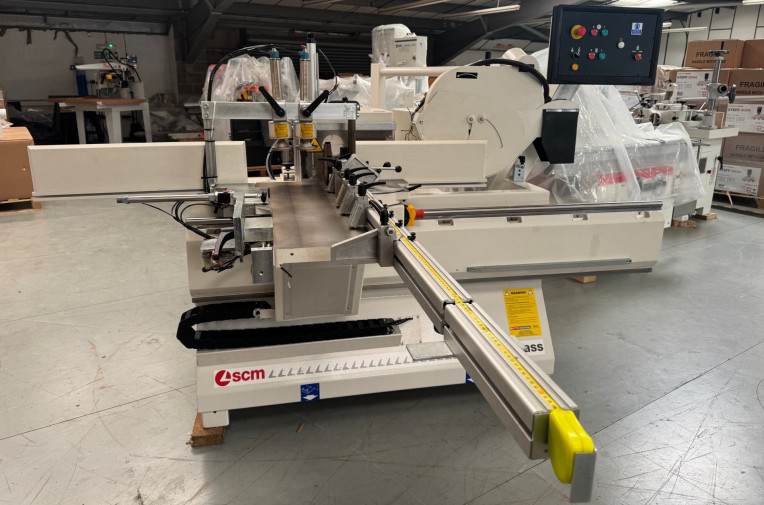

SCM Used TEN220 Class Tenoning System High Specification - Tools Not Included

Product Features

YEAR 2014 Ce Specification

Using an automatic tool change with ISO 40 interchangeable shafts this machine is for dedicated joinery sections for windows and doors.

OVER £3000.00 OF ACCESSORIES OVER STANDARD MACHINE SPEC.

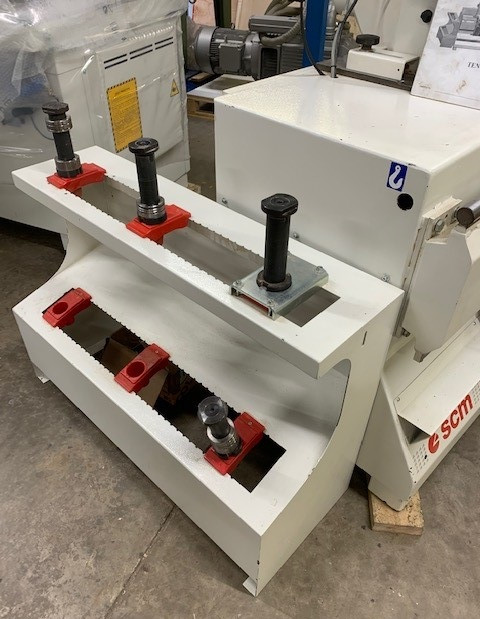

5 x 40MM SHAFTS
1 x 1 1/4" SHAFT

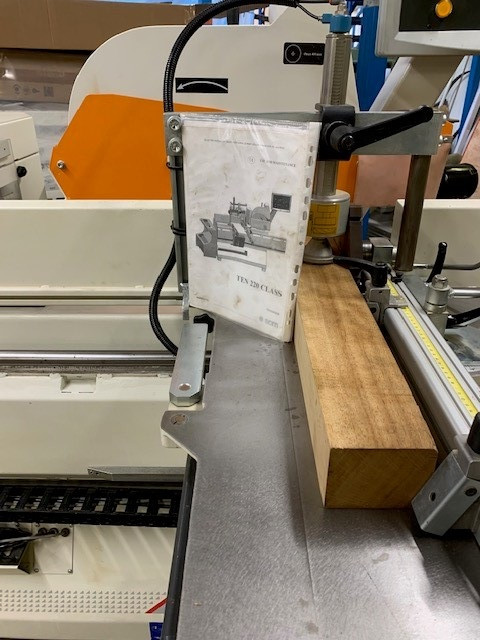

SECOND PNEUMATIC PISTON / 2 TENONS

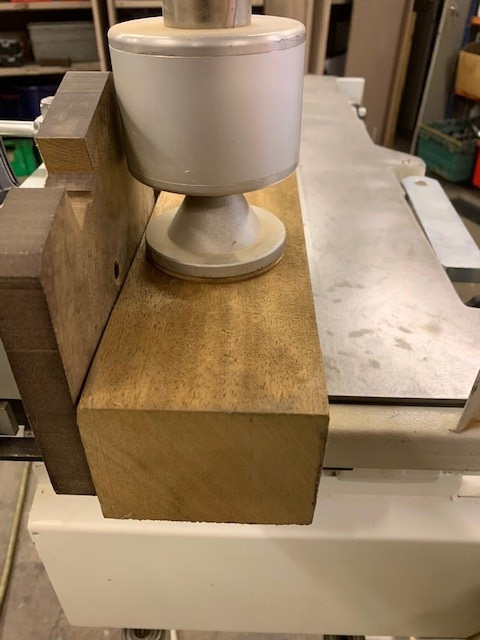

ANTI ROTATION PRESSER
400MM WIDE TABLE
CAPABILITY TO MACHINE 2 TENONS SIMULTANEOUSLY

Technical specification.

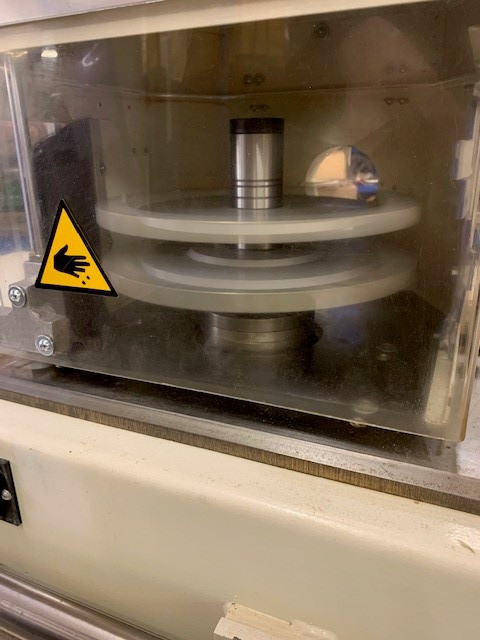

Tool Holder Shaft

- spindle base pos. in reference to the table - 20mm
- vertical shaft stroke 20mm
- max tool diameter 350mm
- tool rotating speed 3600mm
- exhaust outlet 120mm
- motor power 10HP

Circular Saw Unit

- max blade diameter 400mm
- max cutting height 120mm
- longitudinal unit stroke 120mm
- rotating speed 3000 rpm
- exhaust outlet diam 120mm
- motor power 4Hp

Workpeice Support Table

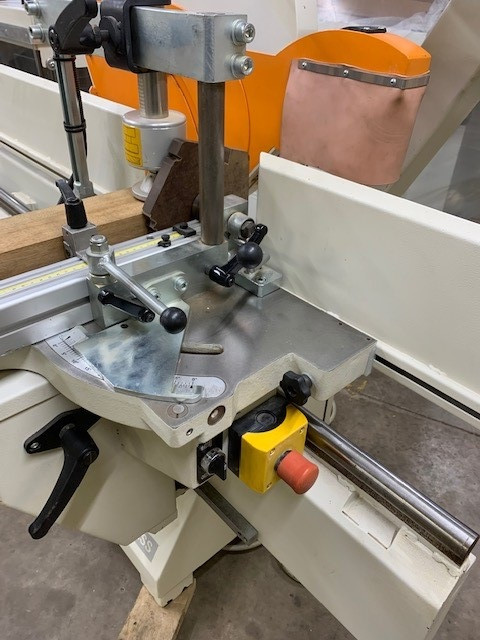

- tilting fence with stops on the table +/-45deg

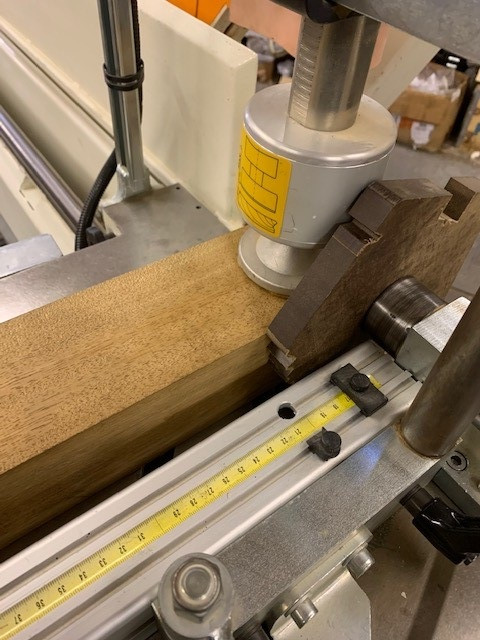

- extensible stop on the fence up to 2800mm
- worktable stroke toward tool 105mm
- compressed air 6 bar

Includes 4 x Mechanical Stops (when not using cut off saw)

VERY GOOD CONDITION
