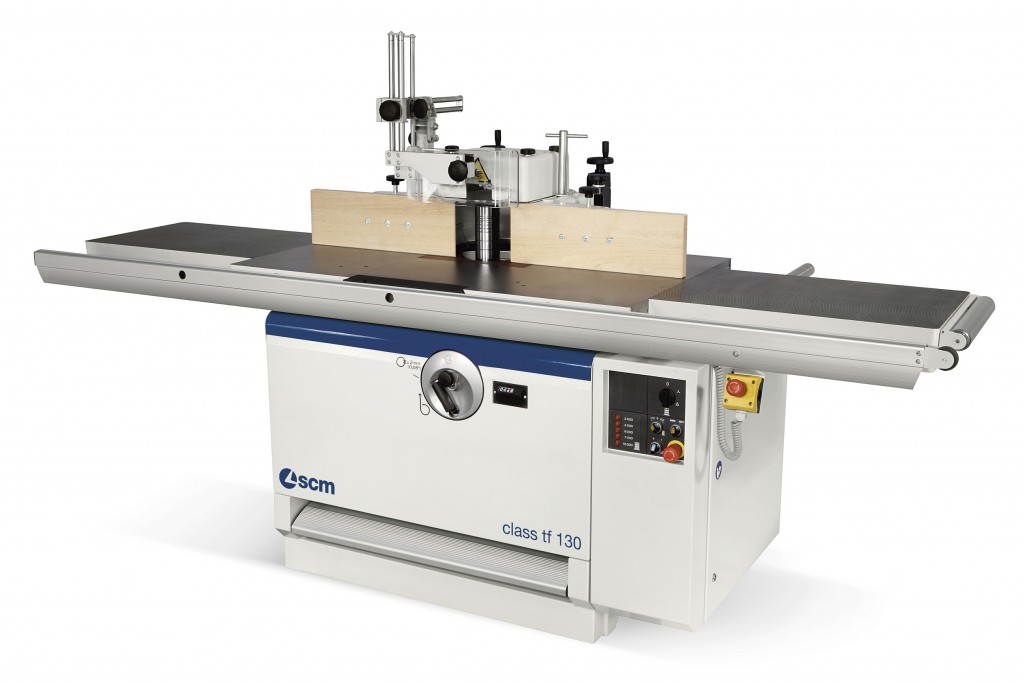

SCM TF130 Class Heavy Duty Spindle Moulder

Enquire Today

was £POA

£7,300 + VAT In stock

Product Features

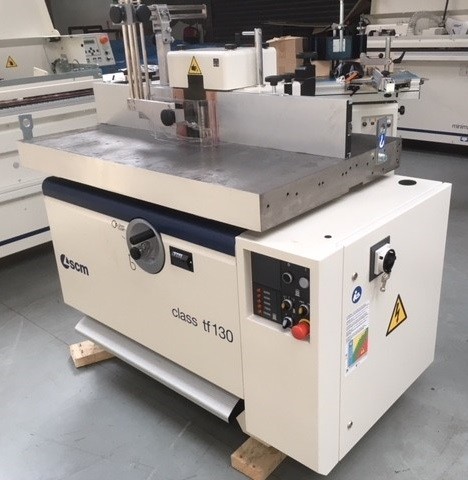

Standard Machine (LL Extension Tables Not Included)

Worktable dimensions [mm] 1200x730
Working length of spindle (C.E). diam. 30-35 (40-50) [mm] 140 (180)
Spindle base projection from table [mm] 52
Spindle base projection from table with interchangeable spindle [mm] 92
Max tool diameter retractable under worktable with rings [mm] 320x85
Spindle fence stroke with mechanical programming (positioning with respect to the spindle axis) [mm] 125
(from -125 to +125 with MK5 spindle)
External diameter of exhaust outlet on spindle moulder hood [mm] 120
External diameter of exhaust outlet on base [mm] 120
Air flow speed of exhaust hood [m/s] 20
Exhaust system air consumption [m3/h] 1700

Electric speed display dial (CE and electrical protections versions)
3000/4500/6000/7000/10000 rpm spindle speeds

MK5 interchangeable spindle 1 1/4"

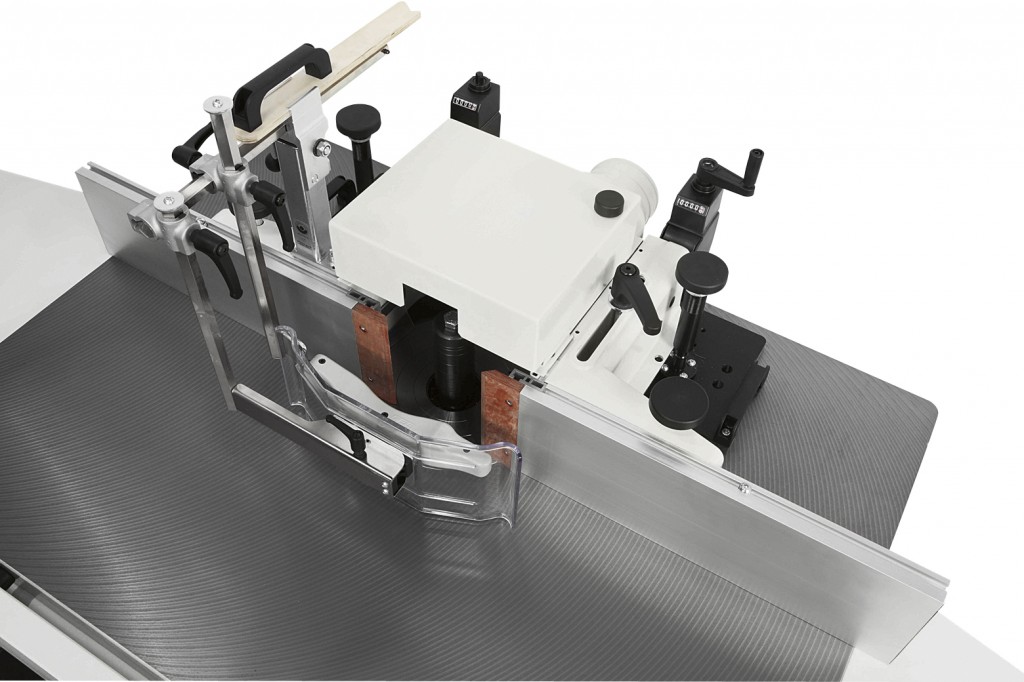

Spindle moulder fence with mechanical adjustment
Spindle moulder fence with continuous linear adjustment by handwheels accessible from the front of the machine:
* adjustment of entire fence in respect of tool diam.
*adjustment of entry fence for thick removal
– mechanical readout for the adjustment
– 250 mm max. tool diameter

Aluminium fence instead of wooden fence
with connecting bars between the two tables

TF130 Class Heavy Duty Spindle Moulder
