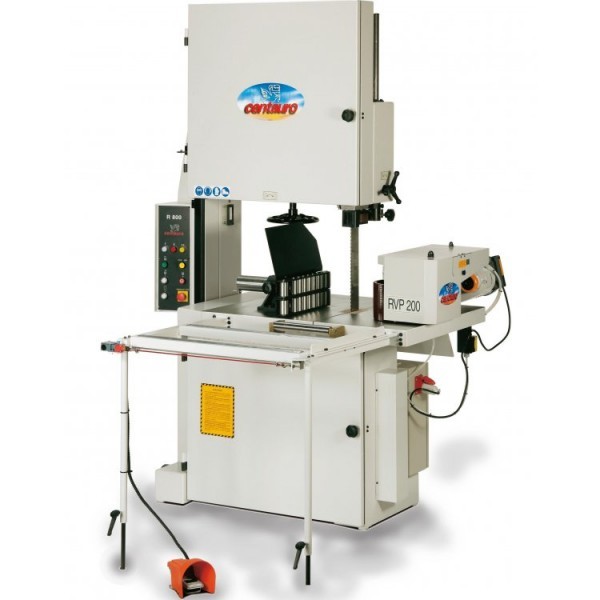

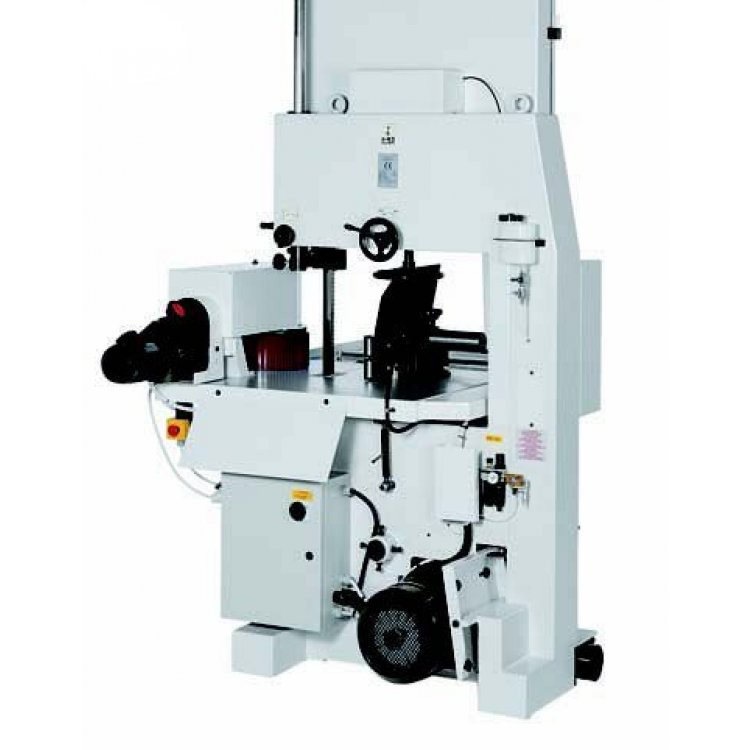

SCM SCM R800 Heavy Duty Resaw with RVP200 Feed Unit

Enquire Today

was £POA

£POA + VAT Out of Stock

Product Features

Wheel diameter 800 mm
Max under guides 400 mm
Max Opening Blade to Feed 190 mm
Max Opening - Blade to Fence 210 mm
Max Blade Width 80 mm
Blade Length 5530-5380 mm (18'1")
Blade Speed 28.5 m/min
Table Height 950 mm
Floor Area 2220 x 1550 mm
Weight 700 kg/td>
Air Pressure 6-8 Bar
motor Power 15kw 20hp
Feeder Type RVP 200
Height of Feed Roller 160 mm
Diameter of Roller 237 mm
Feed Speed 3.5-35m/min

- Automatic star-delta starter.
- Pneumatic wheel braking.
- Motor protection switch.
- Front and rear emergency push-button.
- Front infeed rollers with emergency protection cable. (only supplied for CE-version with Feeder)
- Safety micro-switches to doors.
- Safety micro-switch to footbrake.
- Steel-table, tilting upto 15°.
- Top and bottom guide with wooden blocks.
- Friction rack-pinion and telescopic blade guard.
- Cleaning scrapers on wheels.
- Sawblade tension indicator.
- Sawblade cleaning felt with diesel-oil tank.
- Steel sawblade ready for use.

For further information

Call us on 0116 2861617 or email [email protected]

SCM R800 Heavy Duty Resaw with RVP200 Feed Unit
