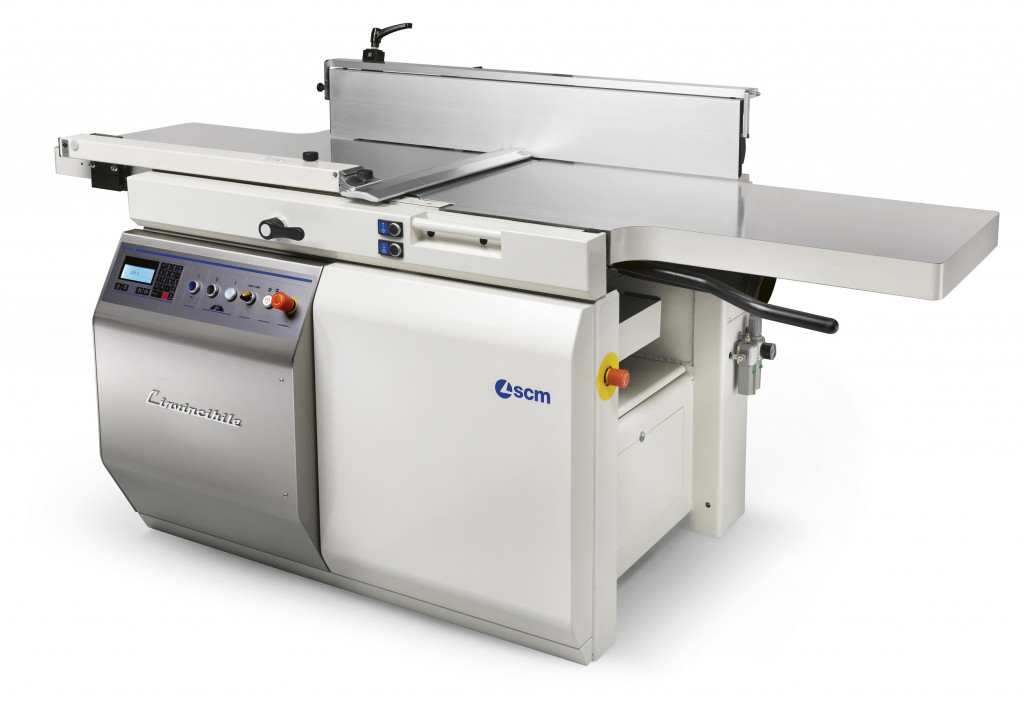

SCM FS 7 L'invincibile Combined Planer & Thicknesser with 'XYLENT' Cutterblock

Enquire Today

was £19,667

£16,555 + VAT Out of Stock

Product Features

Delivery for End August 2021

Max. working width [mm] 520
Total lengthof surfacing tables [mm] 2310
Cutterblock diameter [mm] 120
Spindle speed [rpm] 5000
No. 4 knives [mm] 35x3x520
Aluminium surfacing fence [mm] 1200x190
Surfacing fence tilting from 90° to -45°
Min/max working thickness [mm] 3 / 250
Feed speed of thicknesser [m/min] 5-8-12-18
Exhaust hood for surfacer diameter [mm] 120
Exhaust hood for thicknesser diameter [mm] 120

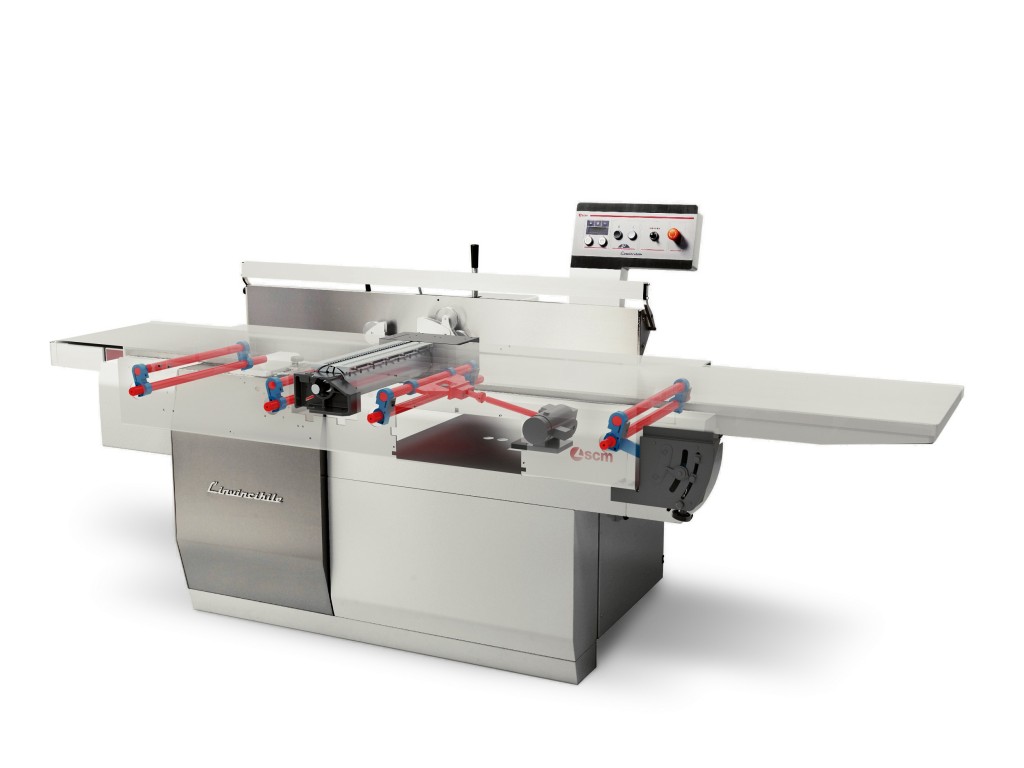

Manual movement of infeed surface tables by means of parallelogram system on connecting rods, with readout of cutting depth on scale
Simultaneous lifting and locking of surface tables complete with mechanical safety device

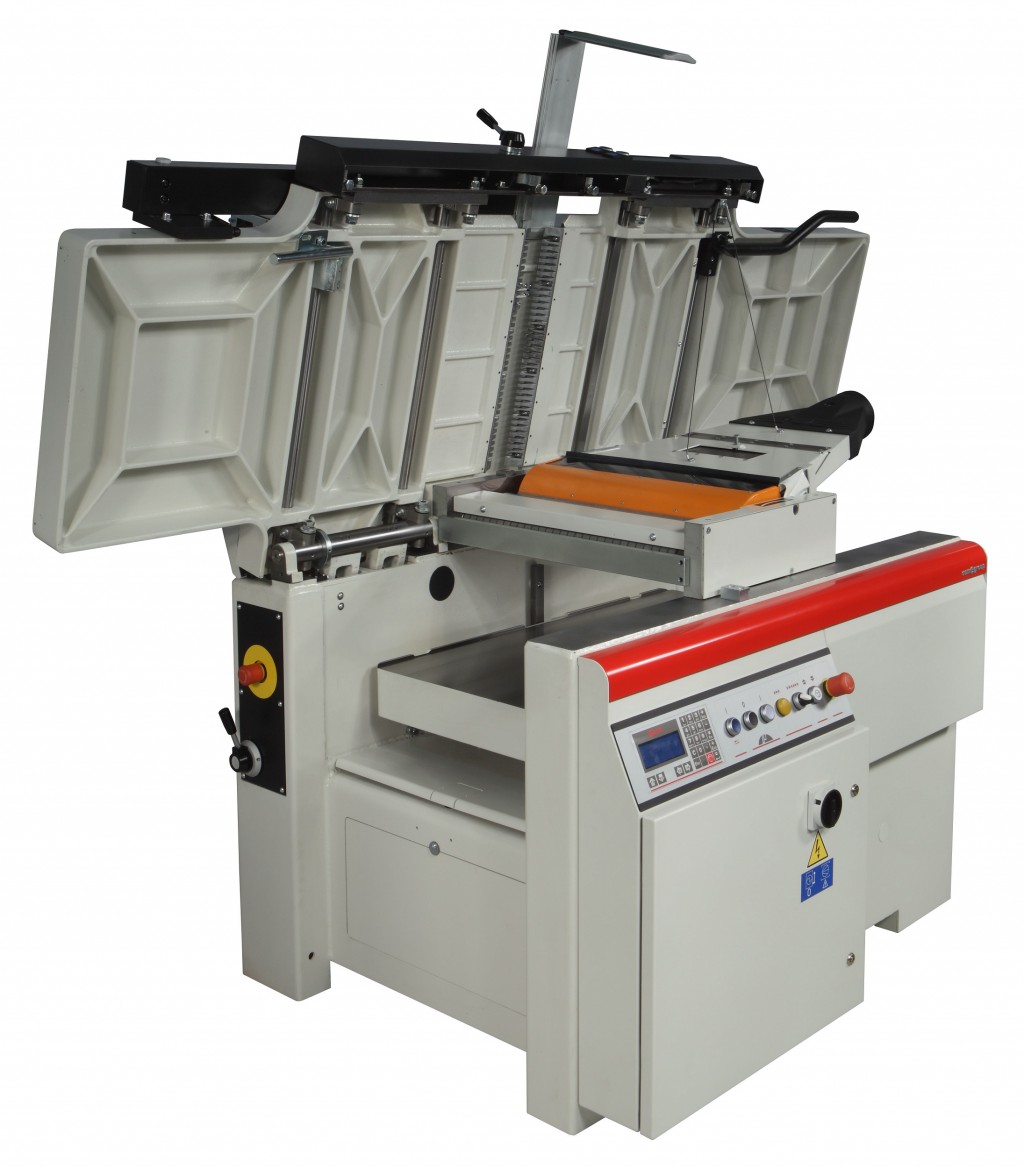

Speedy setting up for changeover from surfacer to thicknesser (CE version)
complete with lifting of surface table and automatic positioning of exhaust hood by means of pneumatic system

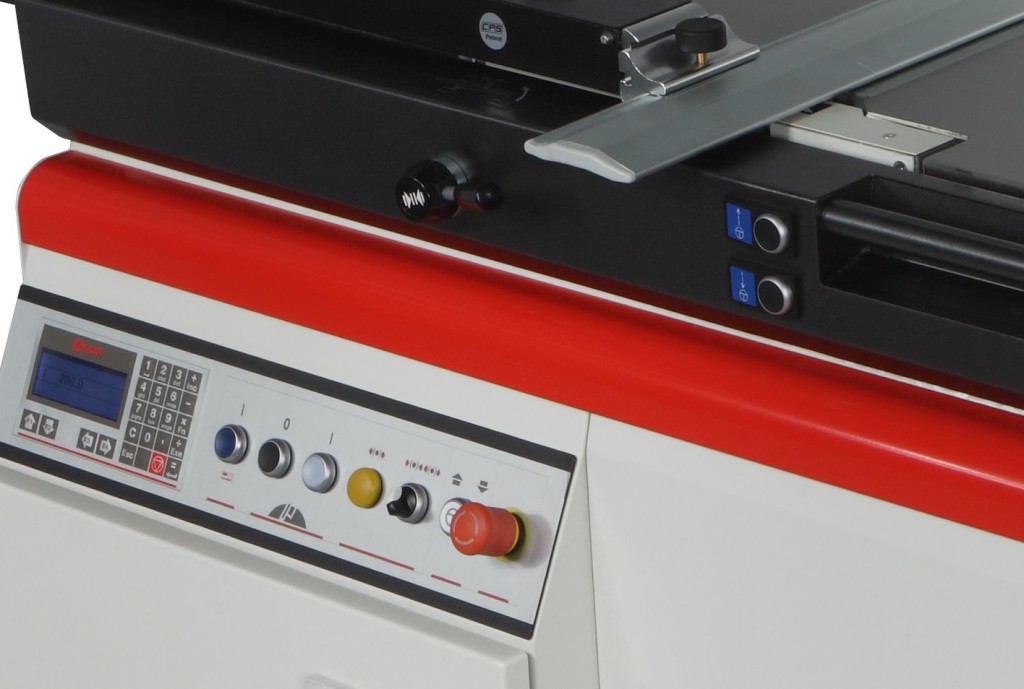

"READY" electronic control
complete with
– management of the thicknessing table positioning.
– mode: manual, semiautomatic and automatic with memory capacity up to 99 programs.
– additional functions: calculator and hour counter.

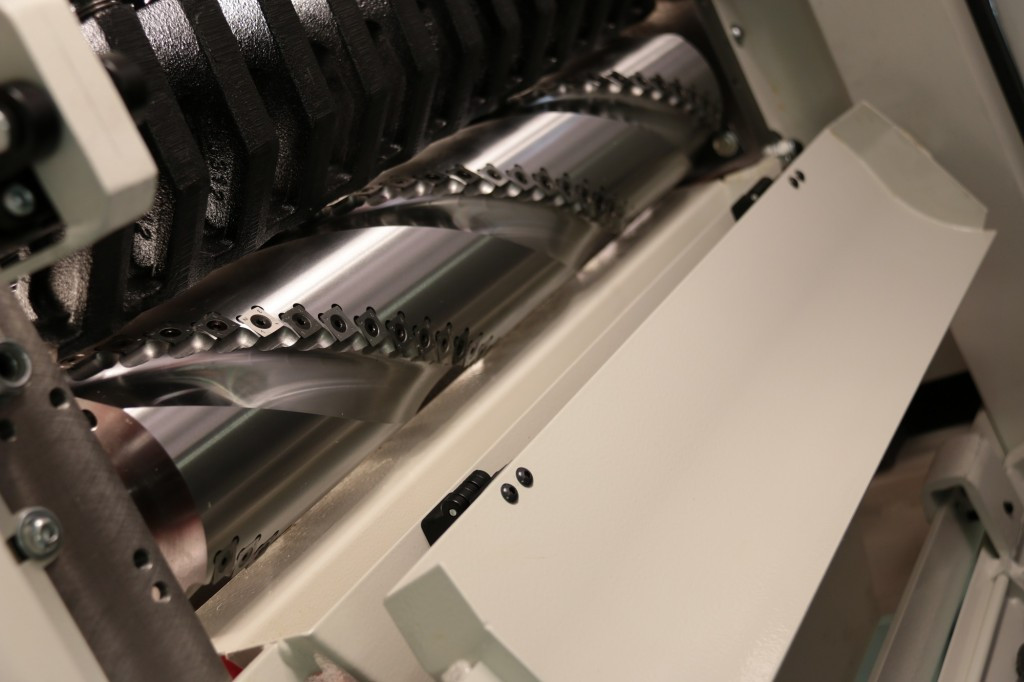

'XYLENT' Spiral Knife Cutterblock

Thicknessing table with vertical moving by means of 4 steel screws
2 x Idle Rollers in Thicknessing Table
Rubber-coated outfeed roller
Interchangeable feed rollers
Sectional Feed Roller
Additional fence for small work pieces

Automatic star-delta start on main motor
Motor kW9 Hz50 (kW 11 Hz60)
kW9 HP12 Hz50 (kW11 HP15 Hz60)
Service kit for use and maintenance

Safety microswitch for correct positioning of surface tables and/or thicknesser chips conveyor
Bridge type planer protection (CE version)
Automatic brake on motor
Overload switch protection
Auxiliary low voltage circuit (110 volt)
Emergency pushbutton
Padlockable main switch
Certificate of conformity "C.E. standards" (CE version)
