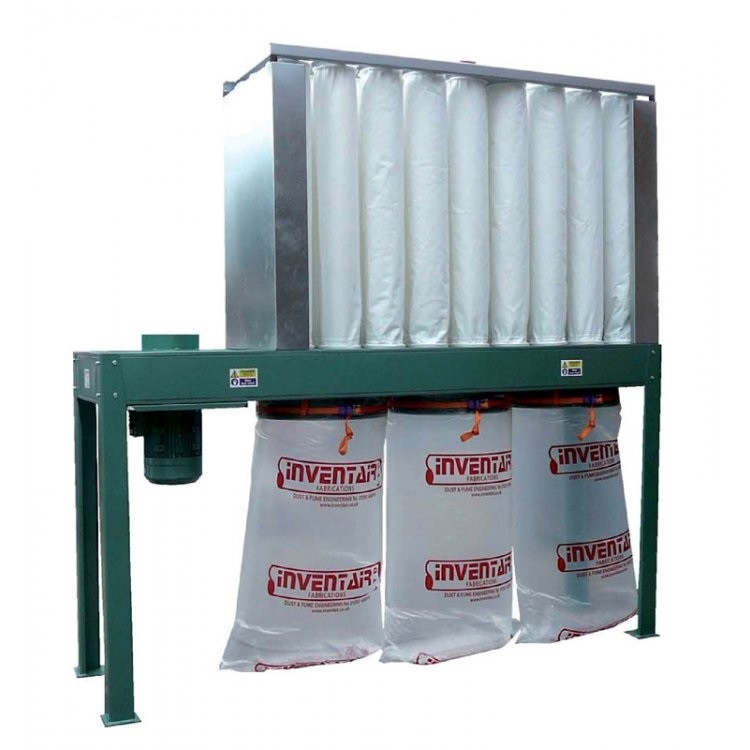

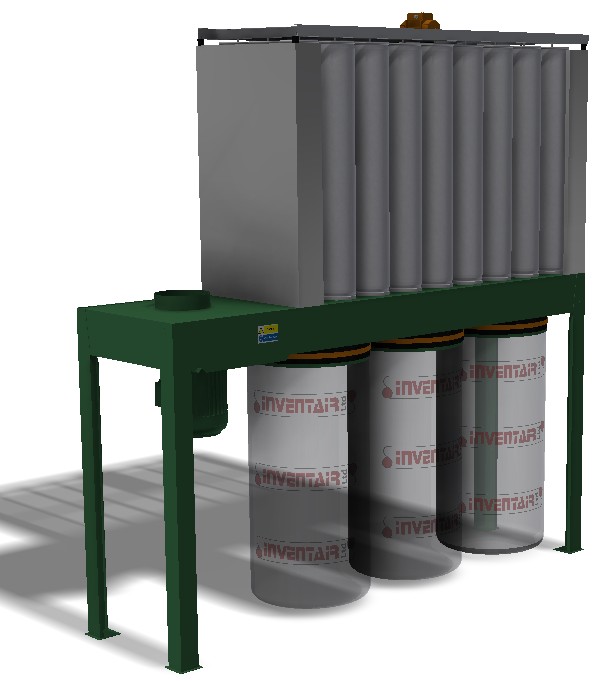

INVENTAIR MK3 MTFA 3 Bag Multi Filter Extraction Unit

Enquire Today

was £POA

£2,699 + VAT In stock

Product Features

The process could not be simpler for the collection of chipboard and MDF sawdust to wood chippings.

All these units are fitted with powerful, self-cleaning fans to transport the waste material through a ductwork system into the unit for separation.
On entering the unit the bulk waste spins into polythene bags and the finer dust is filtered through Highglaze Terylene Needlefelt media to allow the air to return to the working area without heat loss.
Each unit is fitted with Inventair special swirl baffles which maximises even bag fill evenly with waste.

Each filter unit in this range is supplied with its own D.O.L fan and shaker controller. This electronic unit controls the shut down routine to clean the filter media by allowing the fan to stop before activating the shaker motor mounted on top of the filter unit

Dimensions 725mm x 2740mm x 1950mm high
5.5Kw Motor
Volume M3/h 4250 = 2500 cfm
Inlet size 250mm diameter

Technical specification

  • Automatic Cleaning
  • Unique Swirl Baffles
  • Quick connection filters
  • Auto shake vibration motors
  • Robust manufacture
