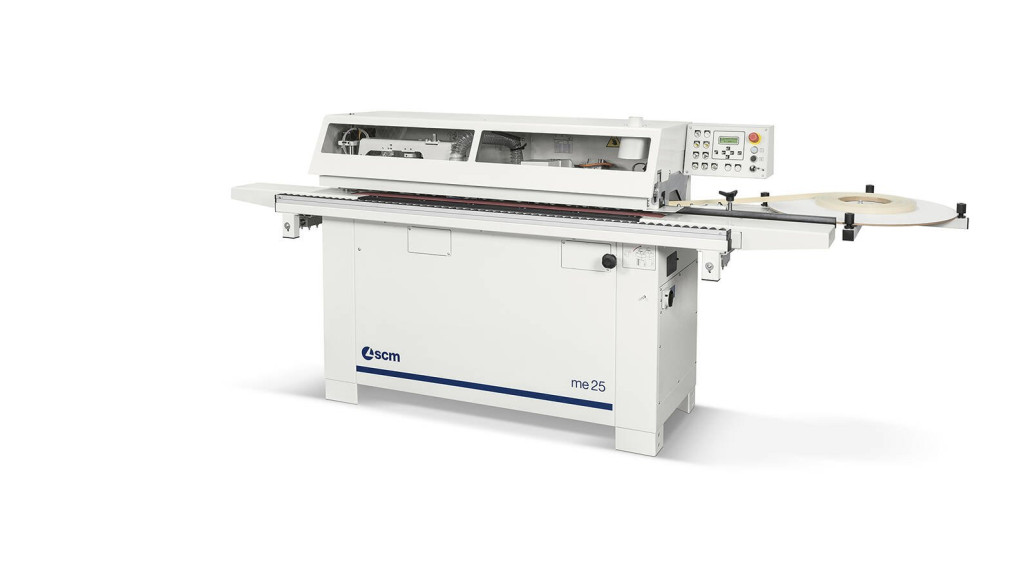

Minimax SPECIAL OFFER - NEW ME25RC Automatic Edge Bander

Enquire Today

was £12,362

£10,999 + VAT In stock

Product Features

Automatic Edge Bander with glue pot for applying edges with great flexibility using melamine, PVC and ABS up to 3 mm and wooden strips up to 5 mm.

Standard equipment:
control panel on machine infeed side
– machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units
– top thick steel pressure beam with rubber coated wheels
– exclusive feed truck
– manual adjustment of top beam with automatic positioning of the operating units according to the selected panel thickness
– numeric indicator of the selected panel thickness
– glue smokes specific exhaust outlet; centralized extraction of the other dusts
– panel support roller which can be extended on the entire length of the machine
– safety enclosure
– electrical cabinet with PLC, padlockable main switch and overload protection
– emergency push buttons

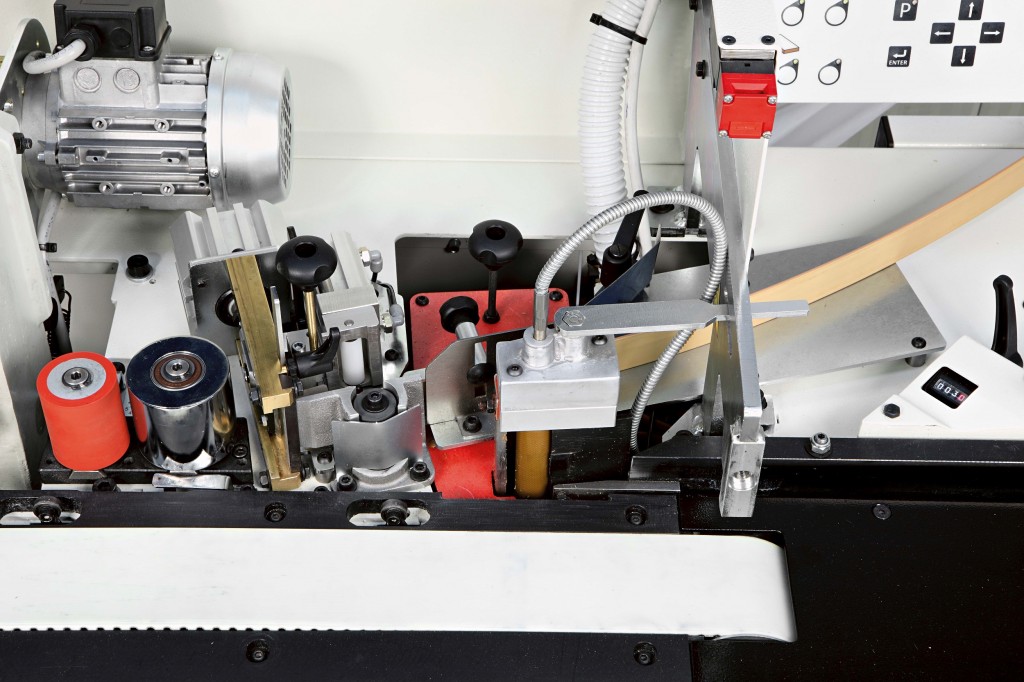

– hot melt glue with quick heat up system and internally teflon coated to allow an easy glue replacement
– glue application on the panel by means of glue spreading roller
– temperature adjustment of the applied glue integrated in the PLC control
– device for automatic recovery of unused glue
– automatic edge loading system for rolled edges with shear device for 3 mm max. thickness edges
– coil holder plate, 730 mm diameter

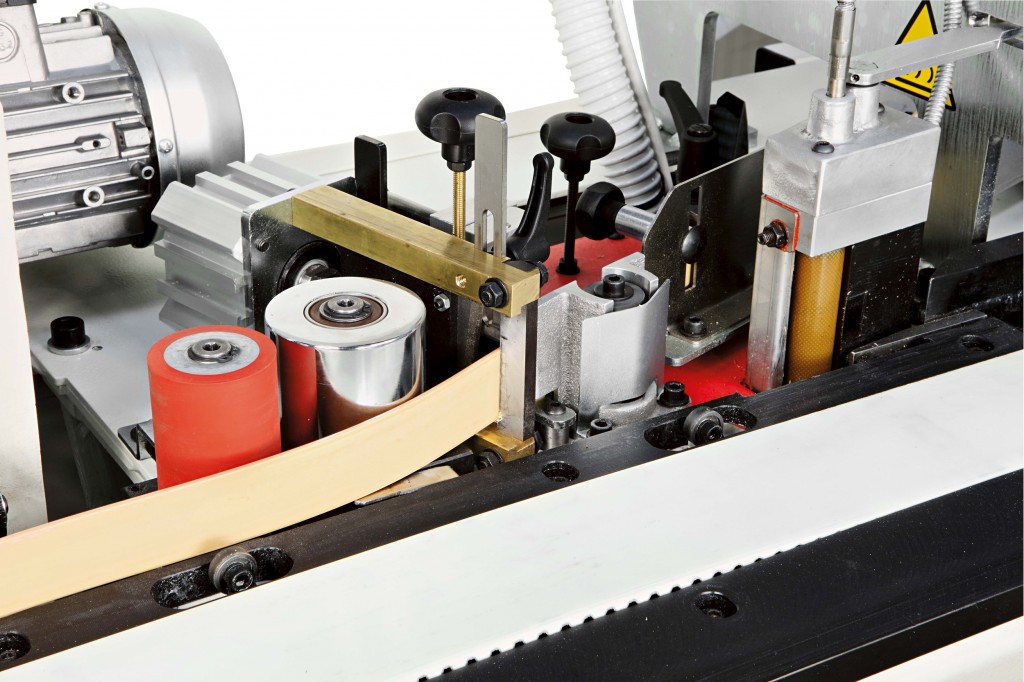

– pressing unit with n. 2 edge pressure rollers: one in steel and the second rubber coated
– adjustable infeed fence with numeric readout
– automatic lowering of the glue pot temperature after a temporary non-use of the machine

With motor for 90° end cutting of front and rear exceeding edge.
The blade alignment with reference to the cutting point is carried out using a new copying device which ensures a constant and precise cutting under any working condition.

Equipped with vertical copying pads for an accurate positioning of tools with reference to the cutting

The unit is provided with 72 mm diameter, combined cutters: the radius part of the cutter is used to trim 2 mm radius edges and chamfered thin edges. The straight part of the cutter is used for the trimming of edges in wood up to 5 mm. Changing from radius edge to edge in wood is done easily moving the cutters axially. The edge thickness is shown by 2 numeric readouts.

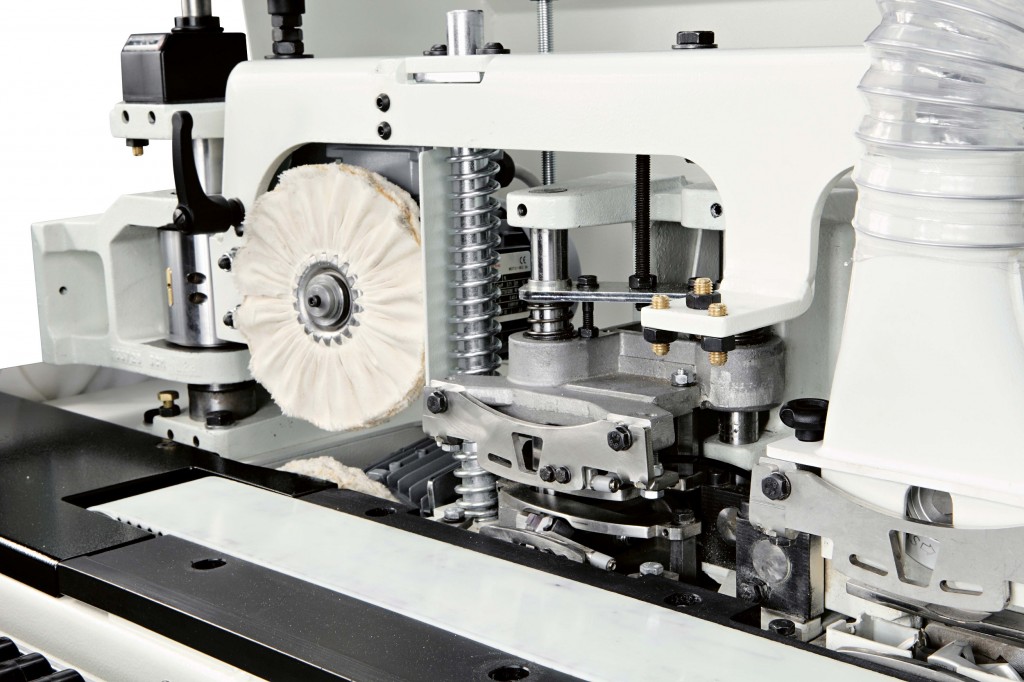

For the finishing of 3 mm PVC/ABS edges.
It assures an excellent vibration free finish thanks to its high rigidity structure.
High working precision thanks to the horizontal and vertical copying pads (with chrome plated surfaces), which assure an accurate positioning of the knives in relation to the cutting point.

Eliminates excess glue
Improves panel cleaning


Technical features

- worktable dimensions [mm] 2600 x 530
- worktable height [mm] 904
- thickness of rolled edges [mm] 0,4 ÷ 3
- thickness of edges in strips [mm] up to 5
- min. ÷ max. panel height [mm] 12 ÷ 50
- min. ÷ max. panel height using edge scraping unit [mm] 16 ÷ 50
- min. panel length/width with rolled edges [mm] 190/65
- min. panel length cut only on the front [mm] 120
- feed speed [m/min] 7
- feed motor power (S1) [kW] 0,55
- pneumatic operating pressure [bar] 6,5
- exhaust outlet diameter [mm] 120
- operating temperature [°C] 20 ÷ 190

Glue pot unit:
- motor power (S1) [kW] 0,18
- glue capacity [kg] ~ 0,5

End cutting un i t :
- motor power (S1) [kW] 0,37
- end cutting blade Ø 90 mm Z20
- blade rotation speed [rpm] 12.000

Trimming unit
- motor power (S1) [kW] 0,75
- widia cutters Ø 75 mm Z4
- cutters rotation speed [rpm] 12.000

Technical specification

  • Now available to Order in Single Phase + £485

For further information

Call us on 0116 2861617 or email [email protected]
