SCM SCM Olimpic K360 T-ER1 Automatic Edge Bander

Enquire Today

was £POA

£38,000 + VAT Out of Stock

Product Features

Versatility and high machining quality with the SCM olimpic k 360, the machine with the aim to be the new reference point in the market for entry level edge banders and complete with a rounding unit.

Compact and easy-to-use due to its advanced technological solutions designed to ensure optimal panel finishing. It is simply the perfect edge bander for companies who require continuous and high quality edge banding of panels even though they may be different from one to another.

The use of "multiedge" machining heads with electronic axes allows the machine to be set up automatically to machine panels with 2 different radii, solid wood and thin edges.

Main functions supplied as standard features:
- 11 m/min panel feed chain
- Orion One Plus Controller with 4" display
- RT- V1 pre-milling unit with 2 high frequency motors
- Gluing with 3 pressure rollers and automatic stand-by
- 2 motors end trimming unit
- 3 manual position R-K trimming unit (combi tool)
- Round 1 rounding unit
- RAS-V edge scraping unit

Feed speed m/min 11
Panel thickness mm 8-60
Edge thickness mm 0,4-6
Centre-to-centre distance between panels mm 600
Minimum panel length (100 mm minimum width ) mm 140
Minimum panel width (210 mm minimum length) mm 90
End cutting unit: cut and "radius" in a single operation.

Automatic and error free cutting of thick edges due to the particular system with two blades that allows the straight cutting of solid wood edges and the chamfering of the thin edges.

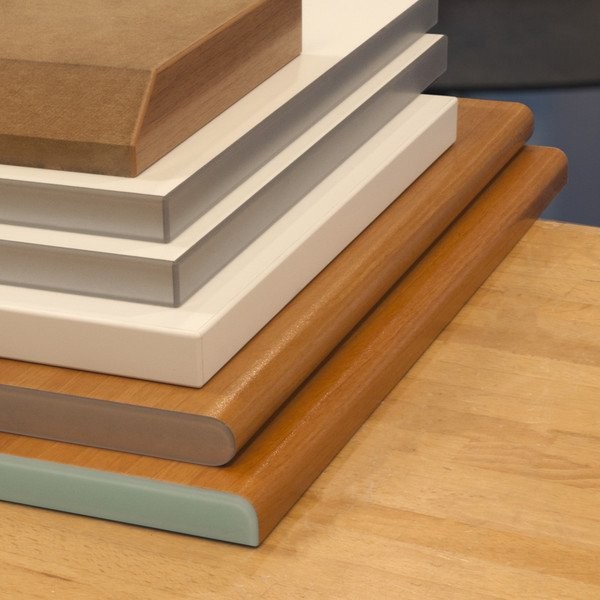

Rounding unit: edge angles finishing on straight and shaped panels.
Rounding of front and rear edge angle on straight, chamfered and post-formed panels. The operation is automatically carried out by the unit and grants an optimal finishing, without necessity of further machining.

Perfect results on all surfaces. The controlled axes allow all intermediate positioning of the trimming and edge scraping groups, ensuring optimal edge banding even in the case of surfaces with different degrees of roughness or panels covered with protective film. These units allow the machining of 2 different radii, endless thin edges and solid wood (comp. K 360 HP T-ER1).

Main optional functions:
- “Touch 7” control
- AAR anti-adhesion
- "Radius" function on K-2 end cutting unit
- RC-V scraping unit
- SP-V brushing unit
- Save Energy
- Air cushion table at the machine entry
- Maestro pro edge and eye-M console (only for HP compositions)

PRICE FROM 38000.00
