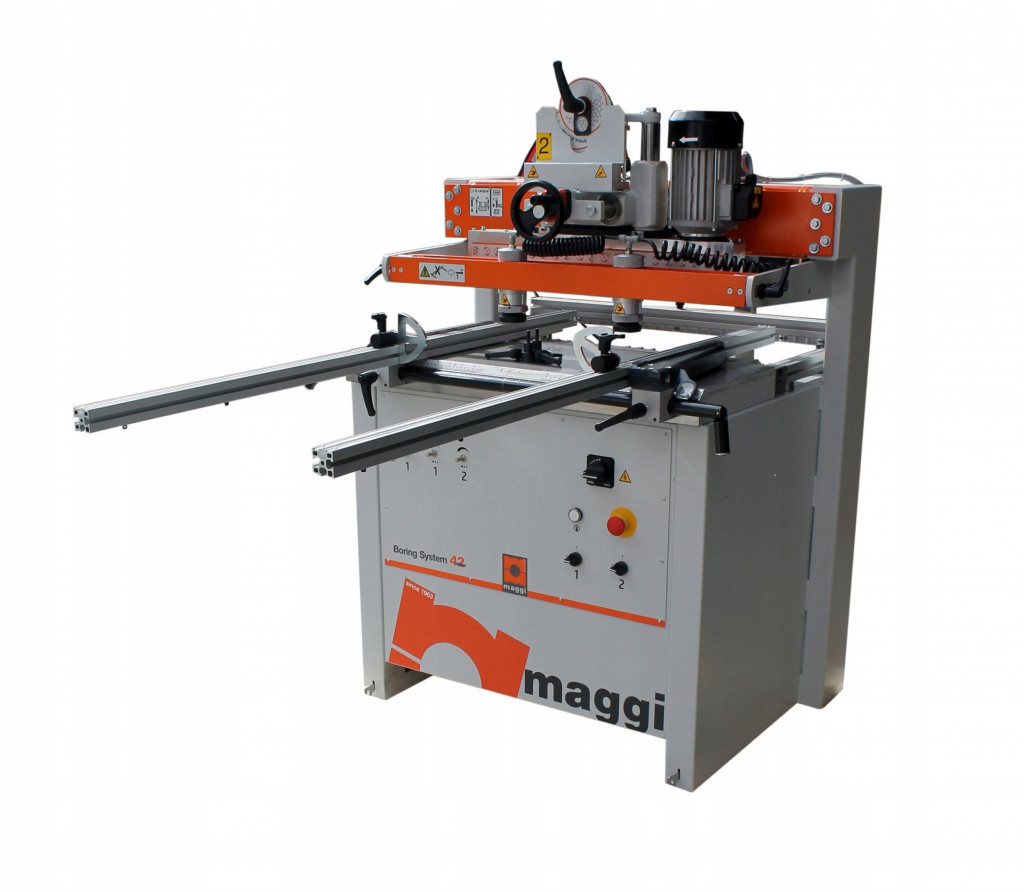

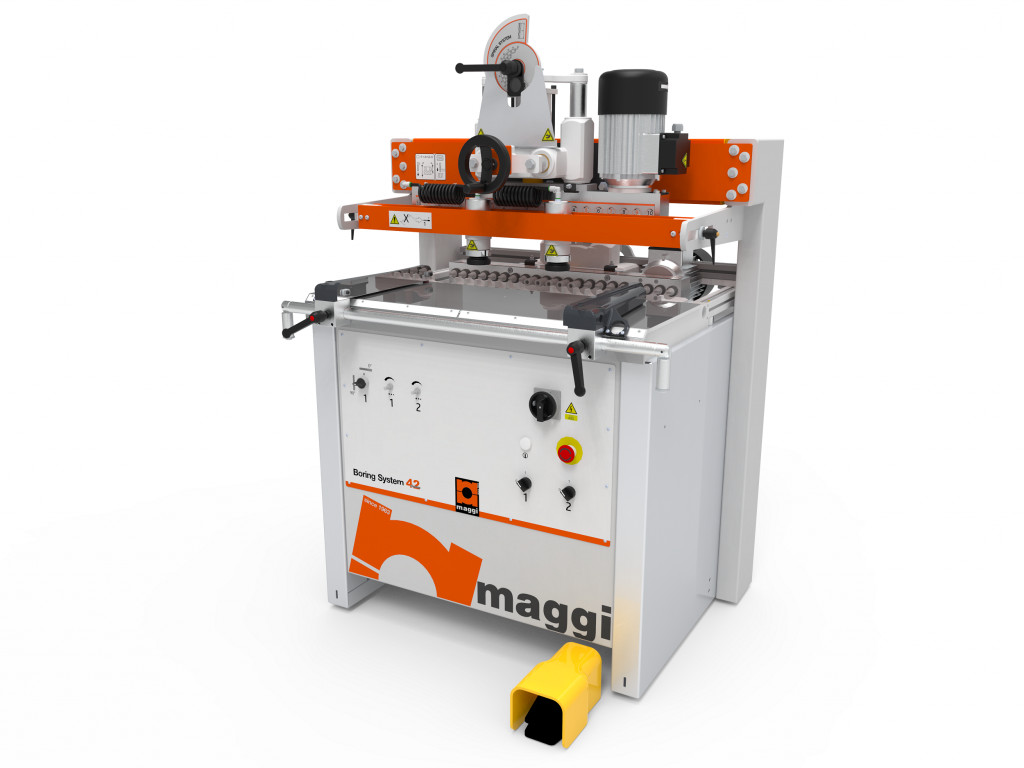

Maggi NEW PRODUCT - MAGGI BORING SYSTEM 42 for combined vertical and horizontal multi operation drilling

Product Features

100% Production Efficiency *cuts work time in half
100% Operational Flexibility *performs multiple operations in one single working cycle.
Combined drilling increases work quality and reduces positioning errors.

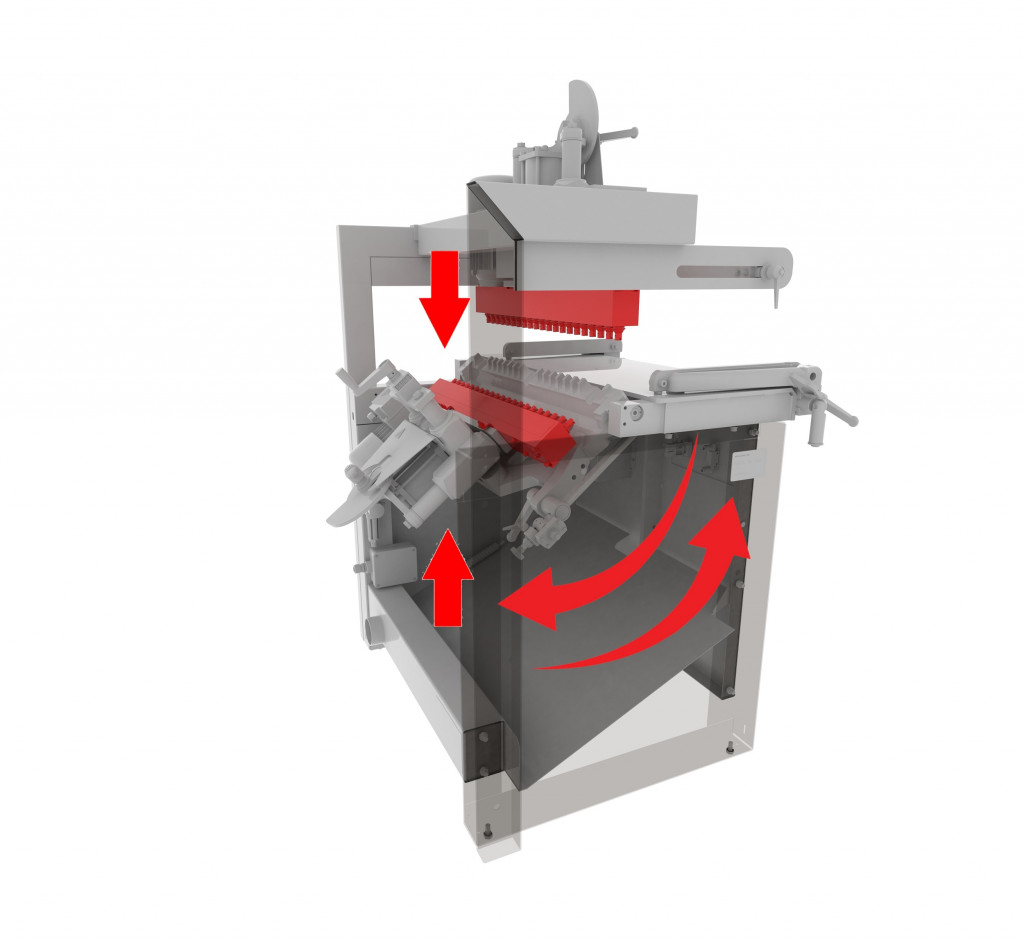

Semi-automatic, Multispindle Boring machine with Double-head :
One fixed vertical head ( top-down),
One tiltable head, horizontal and vertical from below

COMBINED DRILLING: FASTER, MORE ACCURATE
Combined vertical and horizontal
drilling in a single working cycle, with no additional adjustments.
Save time and increase processing
accuracy

FLEXIBILITY AND VERSATILITY
The ability to combine multiple
machining types using two
independent drilling heads makes
this product extremely flexible and
versatile.

FAST TOP-DOWN
DRILLING
Thanks to the vertical top-down
boring unit, you can perform blind
and through holes instantly, without
the need for positioning stops or
additional references — with full
visual control during the operation.

EASY, FAST,
ACCURATE SETTING

Setting the depth and height of both
drilling heads is extremely quick and
easy thanks to the patented Spyral
System and the digital counters.
Accuracy is guaranteed.

10 Quick Change Bushes supplied as standard
2 Safety Hold Down Clamps supplied as standard

Spindles (T2 vertical / T1 horiz. ) N 21 / 21
Left and right spindles each head N. 10 sx - N. 11 dx
Spindle interaxis 32 mm
Total interaxis: 640 mm
Max. tool diameter 40 mm ( 10 mm T2 through-feed)
Max. boring depth 65 mm
Max. boring-head stroke 55 mm (T1) / 50 mm ( T2)
Height of the working table 860 mm
Dimensions of the working table 885 x 349,5 mm
Max. panel thickness 60 mm
Max. panel dimensions 900 x 3000 mm
N° 2 motors HP 2 / KW 1,5 - RPM 2800
Standard pneumatic pressure bar 6/ 8
Air consumption per working cycle 10 NL
Dust collection hood diameter 80 mm

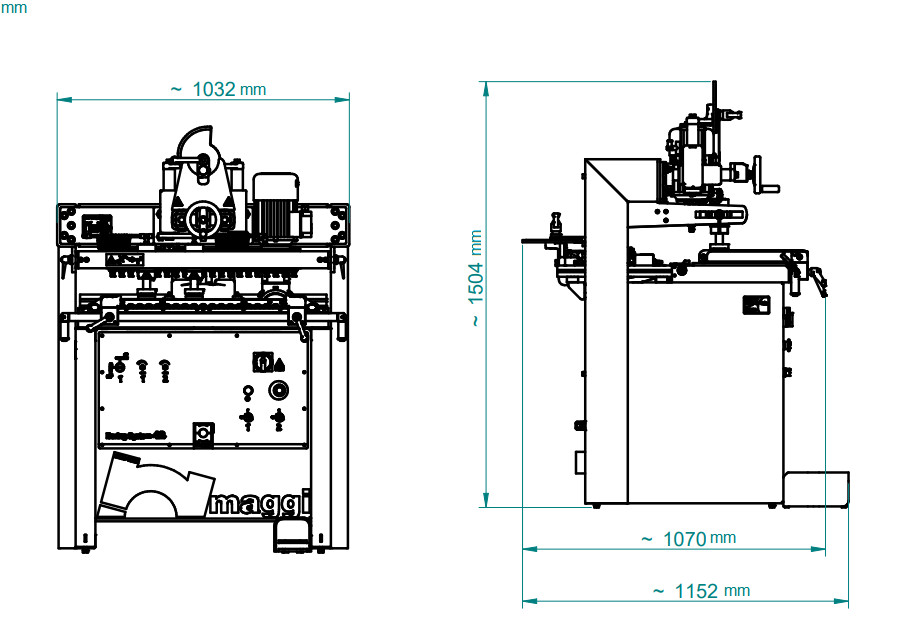

Overall dimensions - net weight: 1070 x 1035 x 1505 mm - kg 366
Package dimensions (machine) 1150 x 950 x 1630 mm
Gross weight 396 Kg
