Maggi OFFER PRICE - Boring System 29 Multi Borer

Enquire Today

was £POA

£4,995 + VAT Out of Stock

Product Features

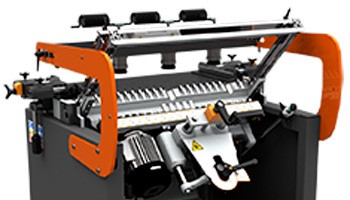

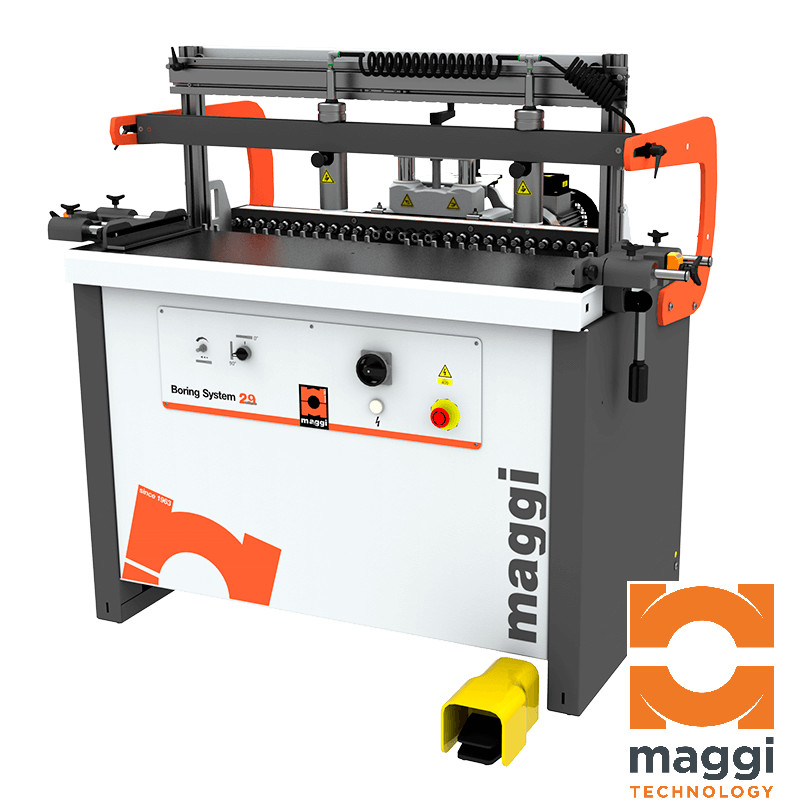

Single head boring machine for horizontal and vertical drilling

Technical Specification

- n.spindles 14 left / 15 right
- distance between spindle centres 32mm
- distance between 1st & last spindle 896mm
- max boring depth 65mm
- max dimensions of workpiece 1150x3000mm
- worktable dimensions 1140mm x 410mm
- motor 2Hp
- working air pressure 6-8 bar

Stock machine supplied with

Set of 3Mt fence bar and 4 x stops
5 x Quick change bushes supplied
Reference fences 45 - 90deg

Technical specification
◾Safety devices
◾High quality end products
◾Quick and precise setting up
◾Safety clamps allows prompt setting on panels with no adjustment
◾Spyral system, programming and boring depth adjustment
◾Pneumatic head-rotation from 0 to 90deg with lock and stop reference
