Maggi SPECIAL OFFER - Boring System 21 Prestige

Enquire Today

was £POA

£3,195 + VAT In stock

Product Features

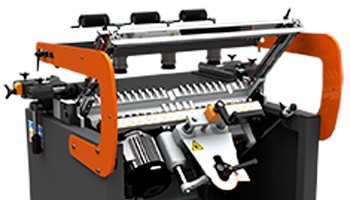

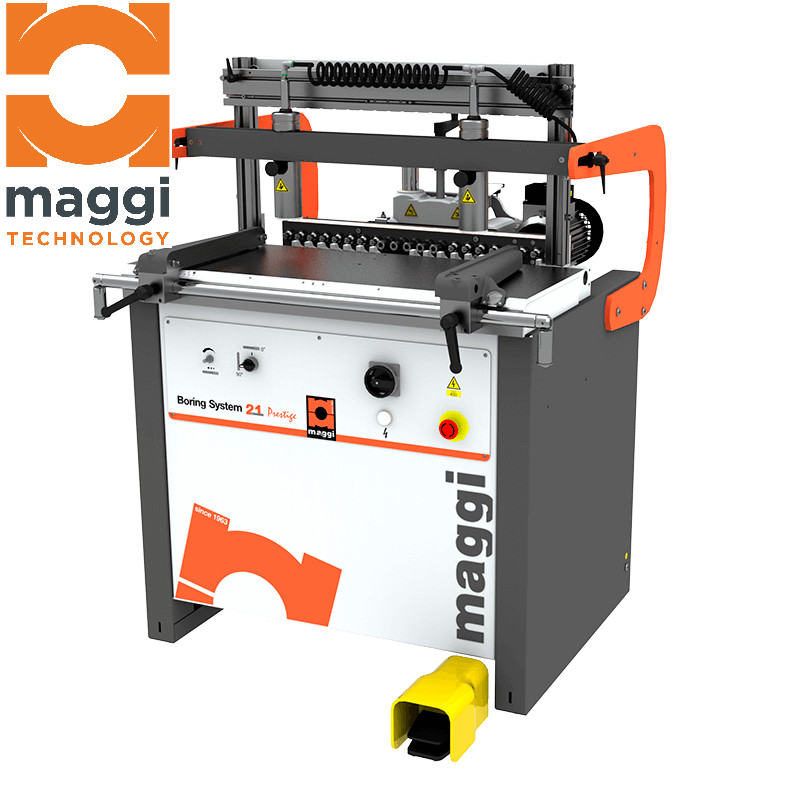

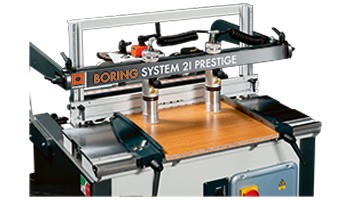

Single head boring machine for horizontal and vertical drilling

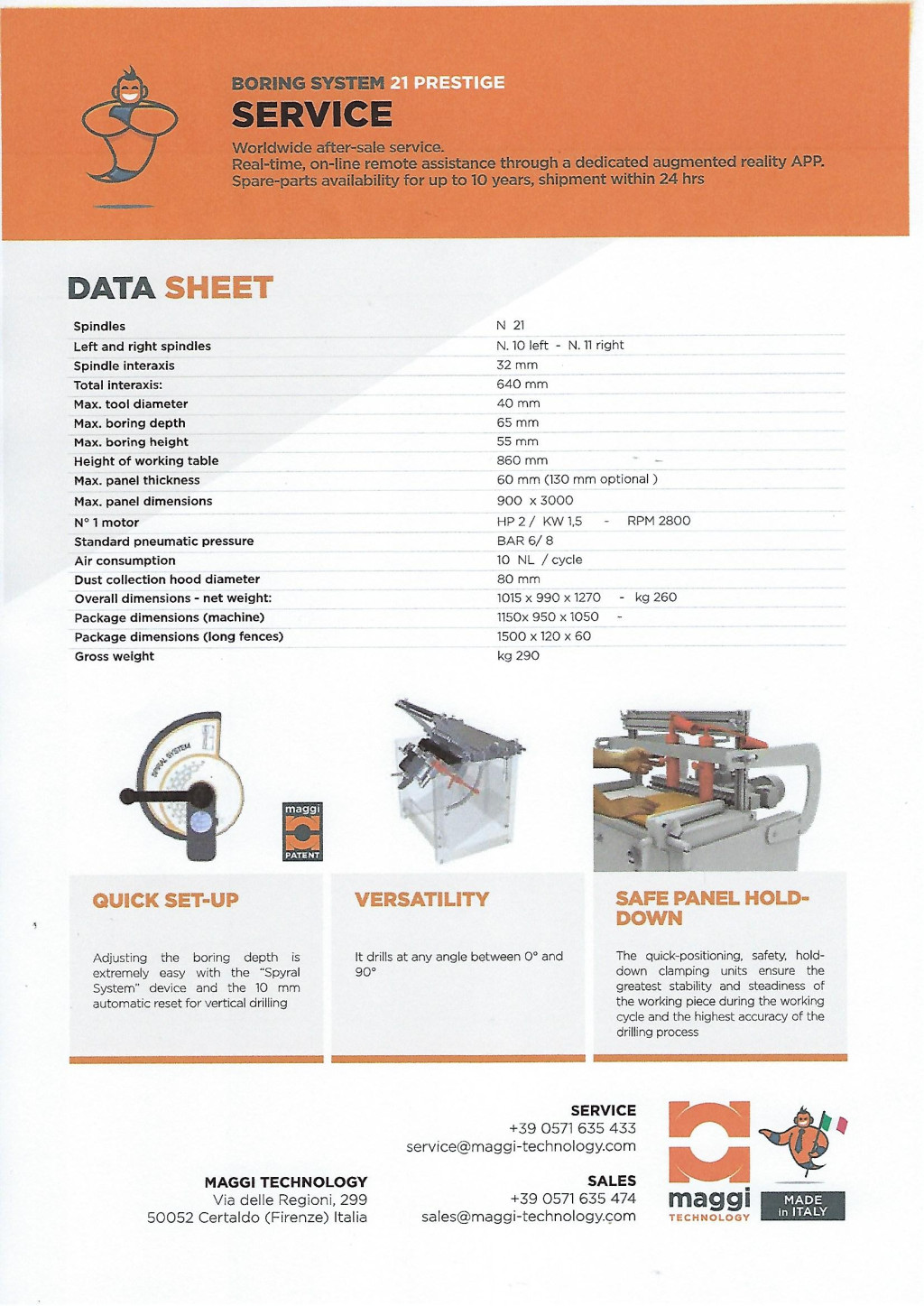

Technical Specification

- n.spindles 10 left / 11 right
- distance between spindle centres 32mm
- distance between 1st & last spindle 604mm
- max boring depth 65mm
- max dimensions of workpiece 850x3000mm
- worktable dimensions 850 x 375mm
- motor 2Hp
- working air pressure 6-7 bar

Pneumatic head-rotation from 0 to 90deg with lock and stop reference
Spyral system, programming and boring depth adjustment
Safety clamps allows prompt setting on panels with no adjustment
Quick and precise setting up
High quality end products
Safety devices

Complete with :

Long Reference Fence (3000mm). Made up of 2 x 1500mm fences with 2 x turning reference stops.
5 x Quick Change Bushes

https://www.youtube.com/watch?v=SNB-Qf9CgcI
