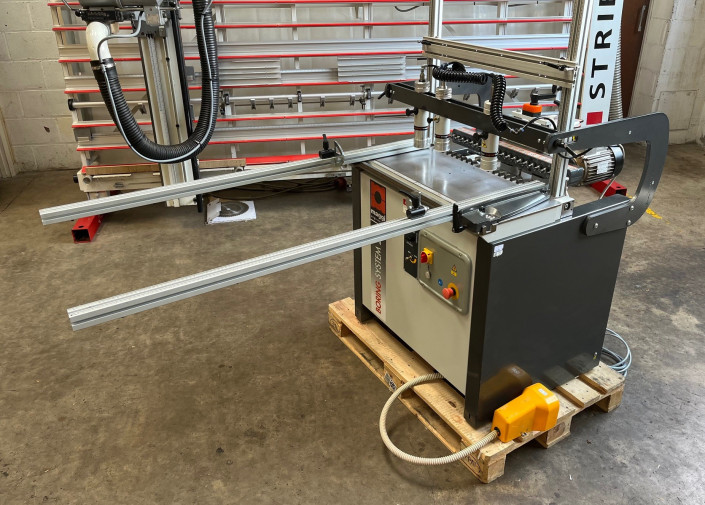

Maggi Used Boring System 21 Prestige Multi Spindle Borer

Product Features

Year 2013 Ce Specification

Single head boring machine for horizontal and vertical drilling

Technical Specification

- n.spindles 10 left / 11 right
- distance between spindle centres 32mm
- distance between 1st & last spindle 604mm
- max boring depth 70mm
- max dimensions of workpiece 850x3000mm
- worktable dimensions 850 x 375mm
- motor 2Hp
- working air pressure 6-7 bar

Pneumatic head-rotation from 0 to 90deg with lock and stop reference
Spyral system, programming and boring depth adjustment
Safety clamps allows prompt setting on panels with no adjustment
Quick and precise setting up
High quality end products
Safety devices
Instruction Book

Includes

3 x Pneumatic Clamps
6 x Quick Change Bushes
2 x 1.5M Fences with stops
